Custom Reporting KPI Creation
Create a new key performance indicator (`KPI`), evaluation and tile.
Overview
Prerequisites
Prerequisites
SAP_CA_BC_SSB_PC to your user to have the ability of creating a key performance indicator (KPI). Reporting Design as Tutorial is a further Prerequisite for this tutorial.Steps
Intro
The Application Create KPI is used for creating new key performance indicators (KPIs) and to activate them as well. For KPIs you can also define evaluations, which you can create and activate by using the Application Create Evaluation. You can combine parameters, filter settings, input parameters and furthermore in your evaluation and apply this to a KPI. With the application Create Tile you are able to display an active evaluation and configure the drill-down navigation path for the tile. The generic drill-down application can be created by using the Create Dill-Down Application.
Time to Complete
15 Min.
Open App Create KPI in group KPI Design.
Create a KPI with Title: Net Amount Goal Type: Maximizing
CDS view: YY1_ZSK_SOITEMQUERY10. Select the only available OData service
and the only available Entity Set. Value Measure: NetAmountInDisplayCurrency.
Click Activate and Add Evaluation.
Skip this step, if you are directly forwarded from [5.1.1]: Open App Create Evaluation in group KPI Design.
Add an Evaluation Evaluation: Sales Quantity Value Type: Fixed Value Target: 500 Warning: 250 Critical: 100 Reference Value: 200 Trend: 200.
Click Activate and Configure Tile.

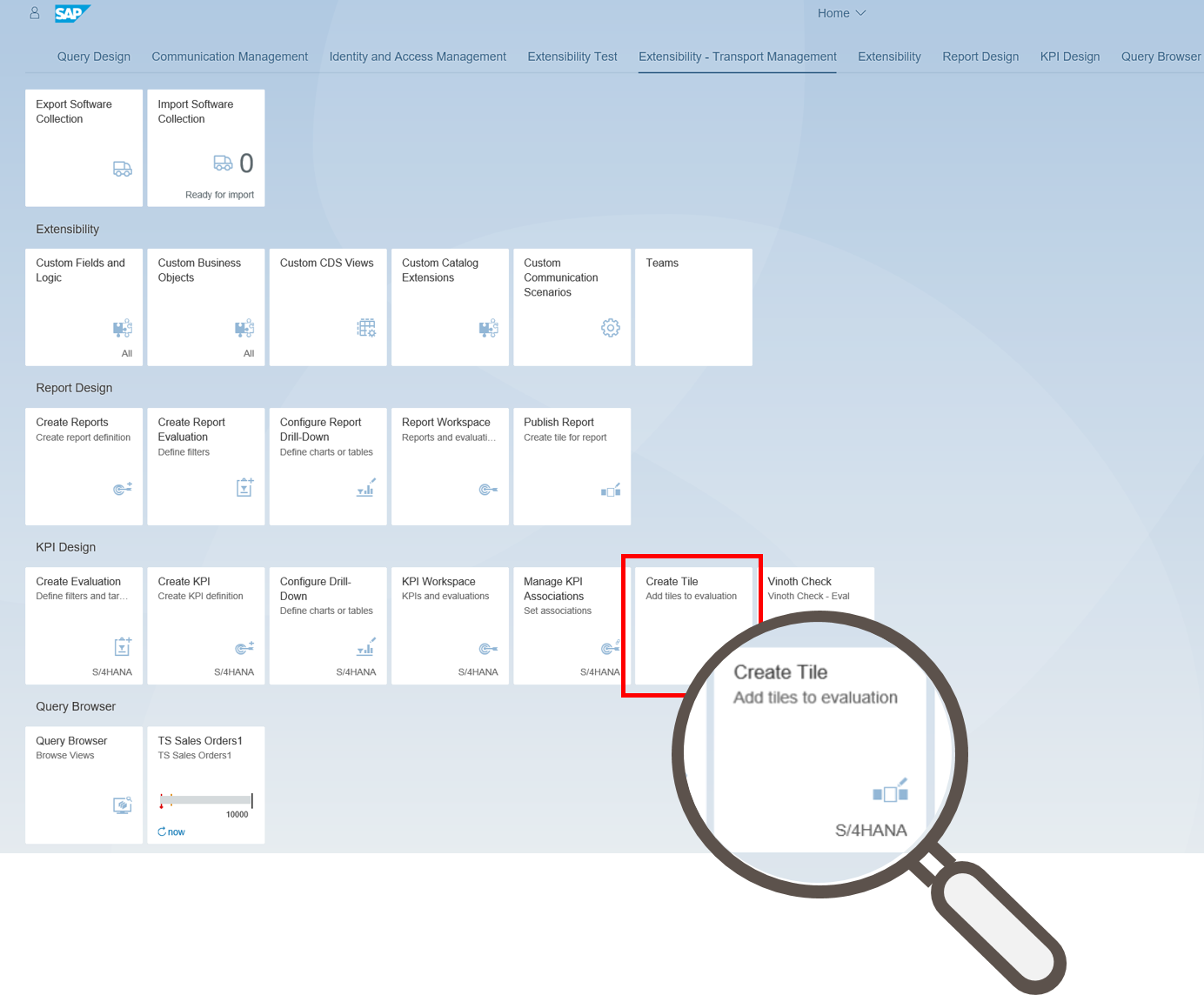

Skip this step, if you are directly forwarded from [5.1.2]: Open App Create Tile in group KPI Design.
Add a tile with the following attributes:
Tile Format: Numeric Tile
Title: Net Amount
Subtitle: Net Amount
Keywords: -
Cache Duration: 1 Minutes
Select Drill-Down: Generic
Semantic Object: Net Amount
Action: Display
Application Parameters: -.
Skip this step, if you are directly forwarded from [5.1.3]: Open App Configure Drill-Down in group KPI Design.
Select the created Evaluation and click on Configure.
Select a dimension and measure.
Click on OK.
Choose as View Title By Industry and as View Type Bar.
Click on OK.
Click on Save Configuration.
Click on Preview to display the configured drill-down.
