Create an SAP Fiori App and Deploy it to SAP BTP, ABAP Environment

Create an SAP Fiori app for a RAP business object from SAP BTP, ABAP Environment in SAP Business Application Studio and deploy it to SAP BTP, ABAP Environment.

🎓beginner ⏱15 min SAP BTP ABAP Environment Beginner ABAP Development SAP Business Technology Platform SAP Business Application Studio 0/12

Overview

🎓 beginner ⏱ 15 min. SAP BTP ABAP EnvironmentBeginnerABAP DevelopmentSAP Business Technology PlatformSAP Business Application Studio

You will learn

✔How to assign role collections
✔How to create dev spaces
✔How to set up organization and space
✔How to create list report object pages
✔How to run SAP Fiori applications
✔How to deploy applications
✔How to check BSP library in Eclipse
✔How to create IAM apps and business catalogs

M Merve Temel October 31, 2023

Created by October 31, 2023

Contributors

Prerequisites

Trial: You need an SAP BTP, ABAP environment trial user or a license.
Licensed system:
- The business catalog SAP_A4C_BC_DEV_UID_PC (Development - UI Deployment) needs to be assigned to a business role of the developer user. For an existing ABAP systems, the business catalog needs to be added manually to the existing developer business role.
- You need to be a member at the used global account
- You need to be an organization manager at the used Cloud Foundry subaccount
- You need to be a security administrator at the used Cloud Foundry Subaccount
You have created the Travel App Mission. Mandatory is only the first tutorial of this tutorial mission Create Database Table and Generate UI Service.

Steps

Open all Close all

Step 1 Assign role collection to user

—

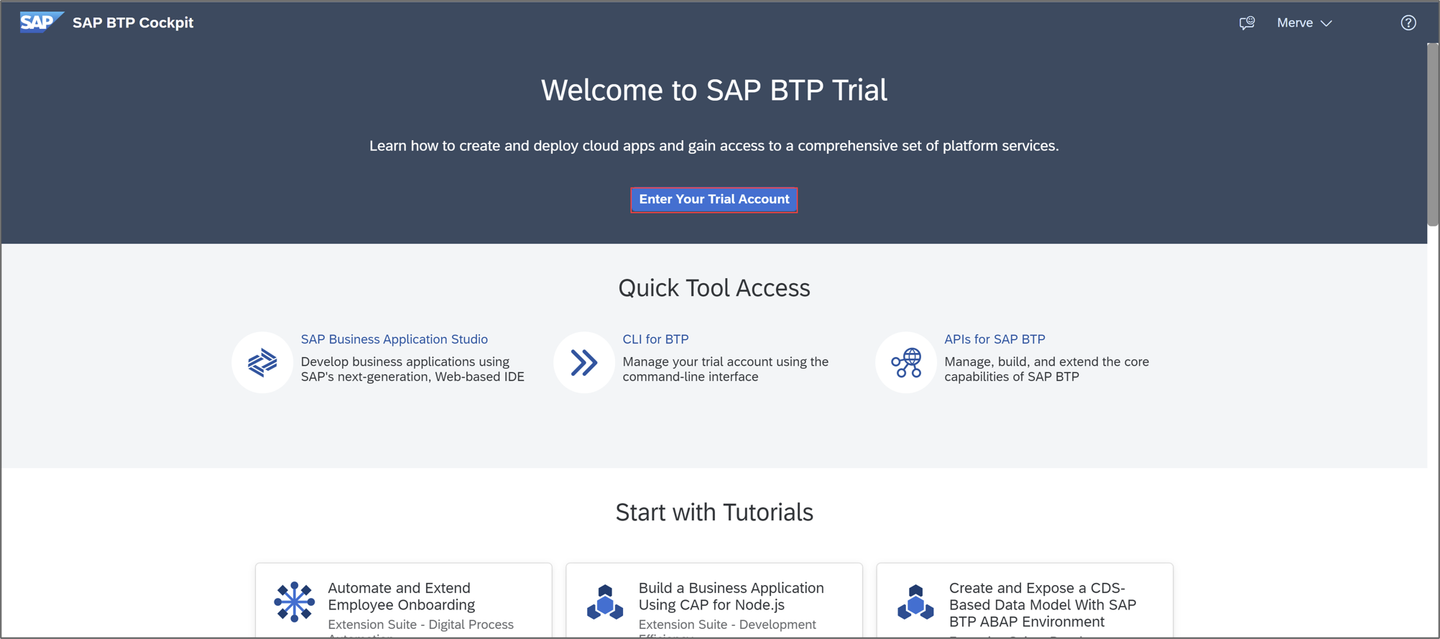

Login to SAP BTP Trial cockpit and click Enter Your Trial Account.
assign role collection

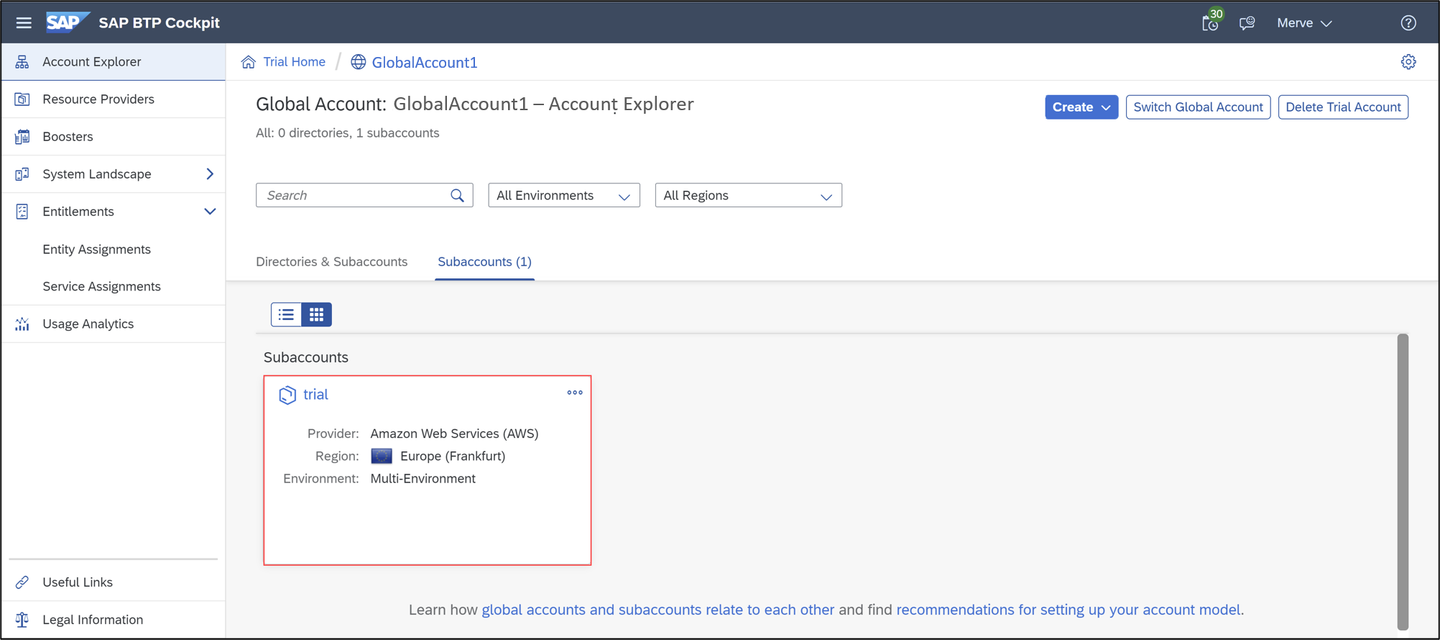

Select your subaccount trial.
assign role collection
Now you are in the trial overview page. Click Users and >.
assign role collection
Select the menu and click Assign Role Collection.
assign role collection
Hint: If you are using a licensed system, make sure you have the trust administrator role assigned to your user.
Select Business_Application_Studio_Developer and click Assign Role Collection.
assign role collection
Check your result. Now your user should have the Business_Application_Studio_Developer role collection assigned.
assign role collection

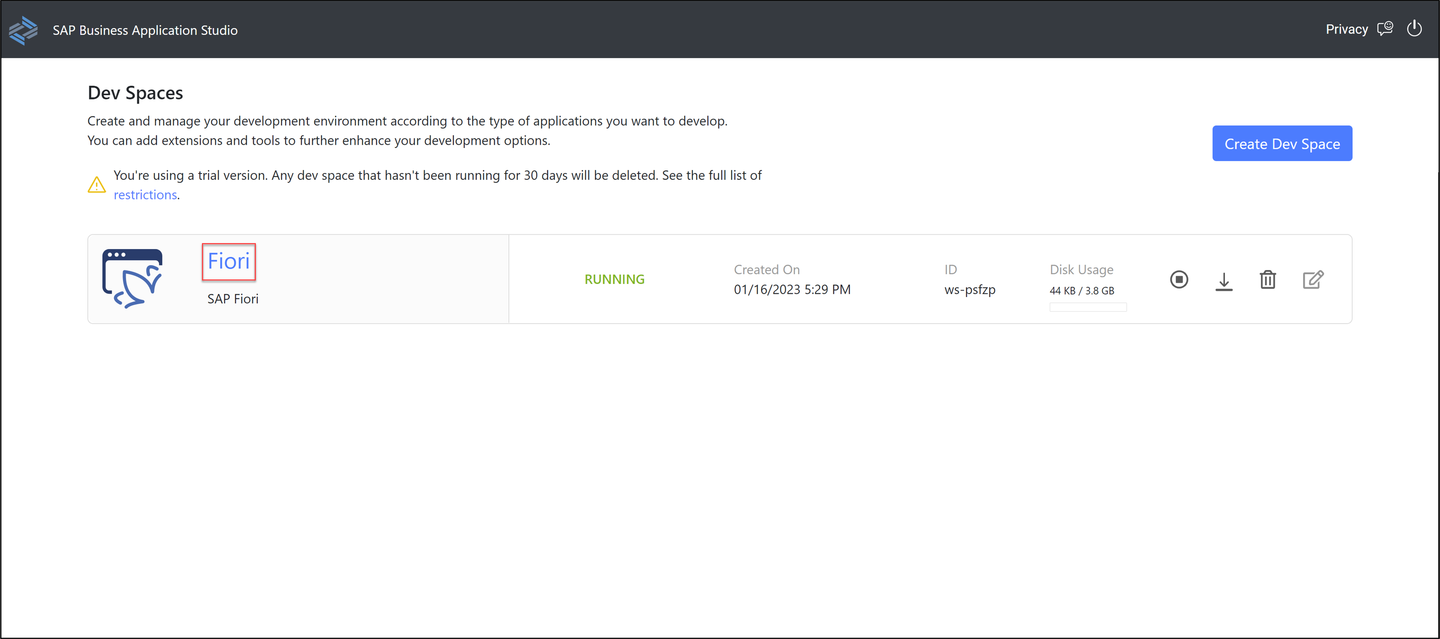

Step 2 Create dev space

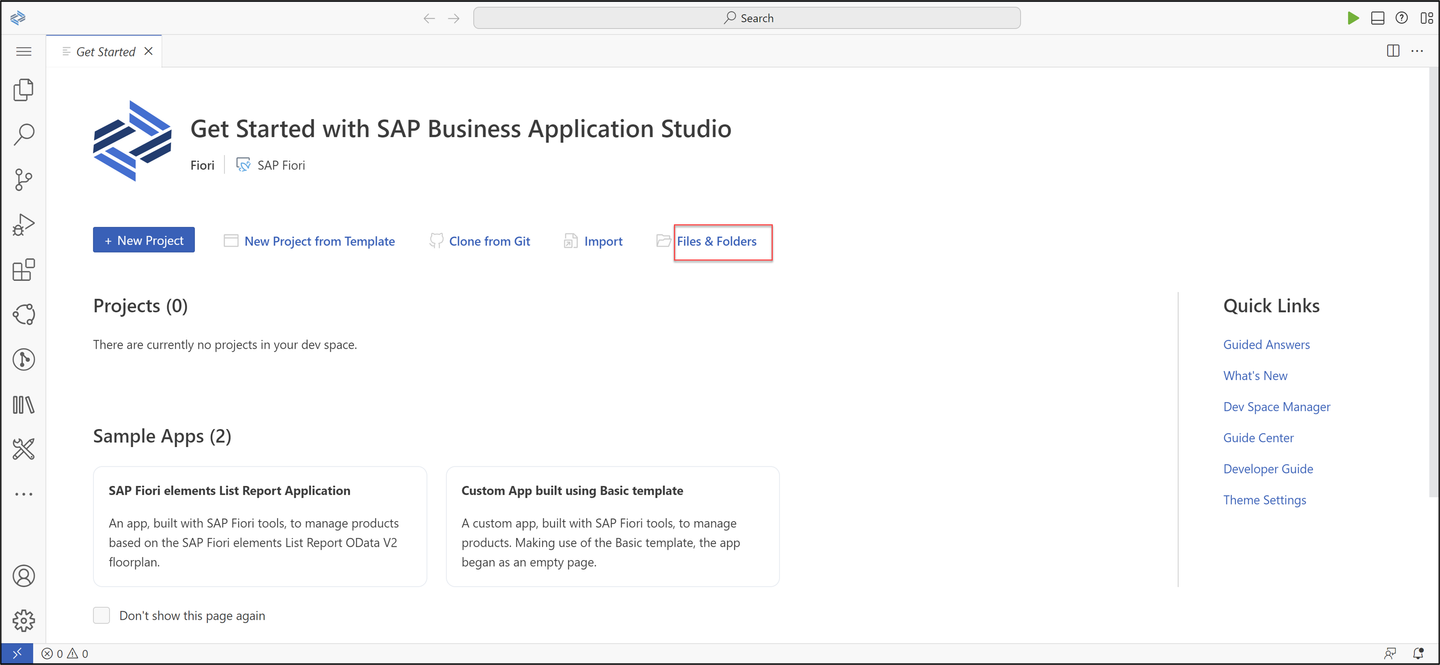

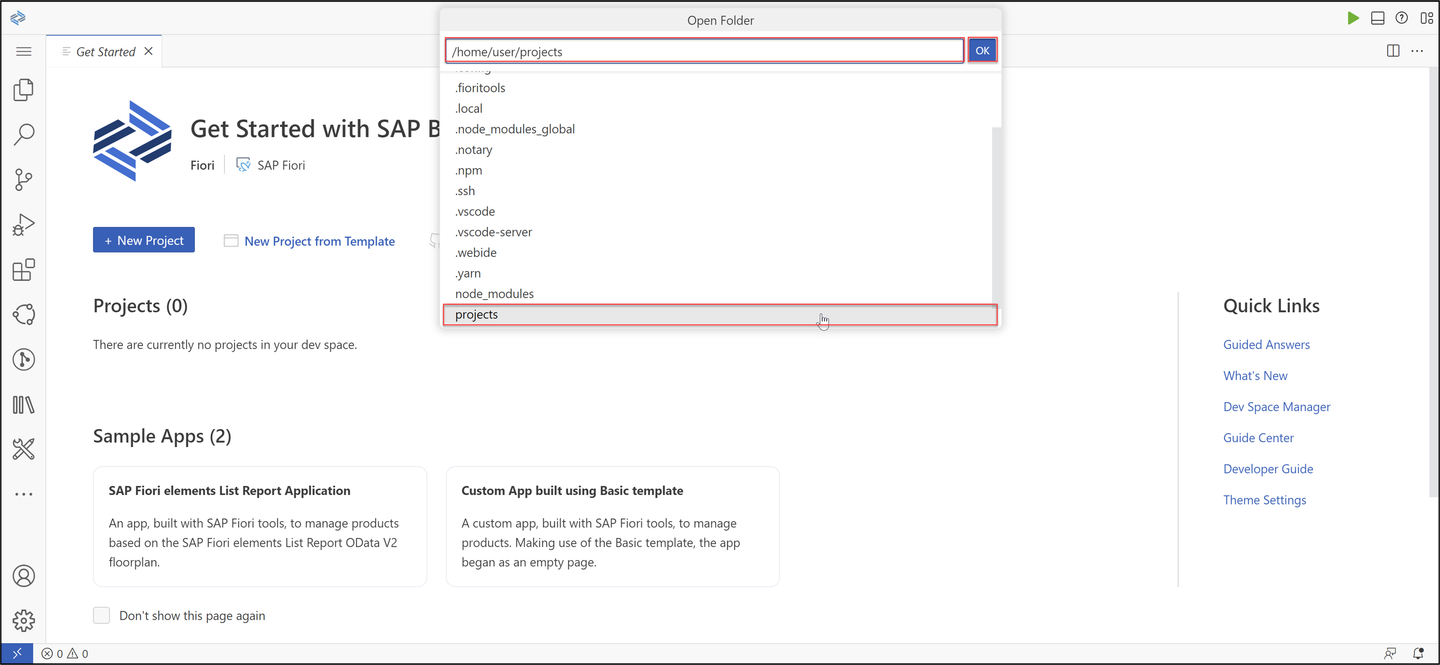

Step 3 Set project folder

Step 4 Set up organization and space

Step 5 Create list report object page

Select the menu on the left side and click View > Command Palette.
object
Search for Fiori: Open Application Generator and select it.
object
Select List Report Page and click Next >.
object
Configure data source, system and service:
- Data source: Connect to a System
- System: <your_abap_trial_system>
- Service: ZRAP100_UI_TRAVEL_O4_### (0001) - OData V4
object
Click Next >.
Select your main entity Travel, check Yes for adding automatically table columns and click Next >.
object
Configure project attributes:
- Name: ZRAP100_###
- Title: Travel App ###
- Description: A Fiori application.
- Add deployment configuration: Yes
- Add FLP configuration: Yes
- Configure advanced options: No
Click Next >.
object

**Hint:** Your **application name must** begin with a `z letter` and **must** be in **lowercase letters**.

Configure deployment:
- Target: ABAP
- Destination: <your_abap_trial_system>
- SAP UI5 ABAP Repository: ZRAP100_###
- Package: ZRAP100_###
- Transport Request: <your_transport_request>
app
Click Next >.
Hint: If you want to copy your transport request, please do following: Open Eclipse, search your package ZRAP100_### and open it. Open your transport organizer to see your transport request. The transport request of the superior folder needs to be chosen. Copy your transport request for later use. You can find your transport request underneath the Modifiable folder.
app
Configure Fiori Launchpad:
- Semantic Object: ZRAP100_###
- Action: display
- Title: Travel App ###
app
Click Finish.
Now all files have been generated.
