Integration of BTP ABAP environment with SAP Build Process Automation

To integrate SAP BTP ABAP environment with External Systems or Services like SAP Build Process Automation you create a Communication Arrangement.

A Communication Arrangement describes which communication partners communicate with each other in the scenario, and how they communicate. Communication Arrangement is formed by combining the below artifacts.

• Communication Scenario: Communication Scenario is a design time description of how two communication partners communicate with each other. It consists of technical information like inbound and/or outbound services example OData or SOAP as well as supported authentication methods. There are various standard communication scenarios provided by SAP which are ready to use, like in this tutorial we would be using SAP_COM_0863.

• Communication System: The communication system represents the communication partner within a communication e.g., SAP Build Process Automation in this case.

• Communication User: Communication users are used by Communication Systems to authenticate themselves to be able to connect to your system in BTP ABAP Environment.

You will now create a communication arrangement in the ABAP system on BTP ABAP Environment using service key of SAP Build Process Automation Instance.

Communication Arrangement is not transported between systems but created locally by the system administrator.

1. Get SAP Build Process Automation Service Key.

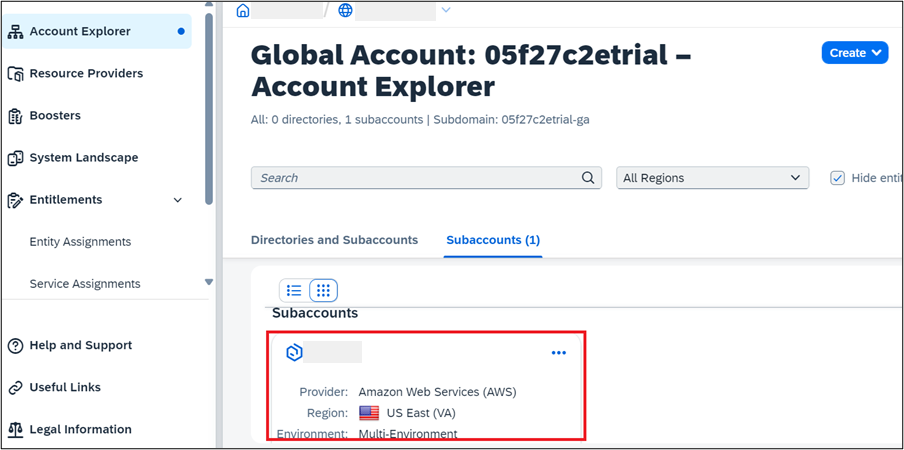

   • In the BTP Cockpit navigate to your development subaccount.

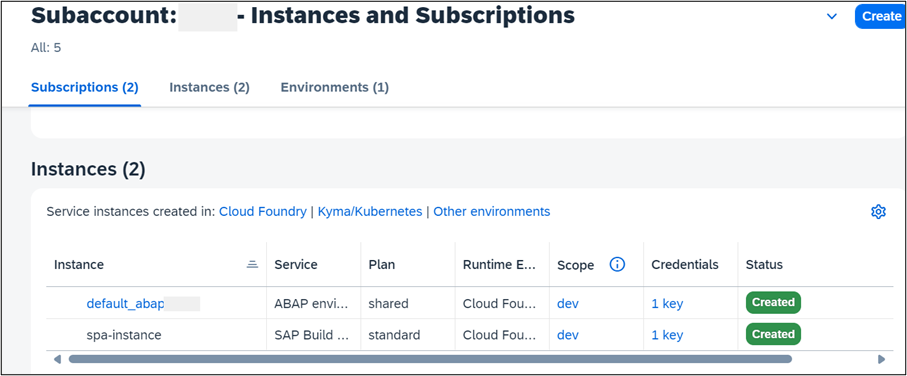

   • Click Services and Instances.



   • Click Instances.



   • Click the name of your SAP Build Process Automation instance.



   • From the navigation pane choose, Service keys.



   • Select one entry and copy the service key.



2. Open the Communication Arrangement app in your SAP BTP ABAP Environment.

   • Click on the BTP ABAP environment instance in your BTP sub account to navigate to the Fiori launchpad.

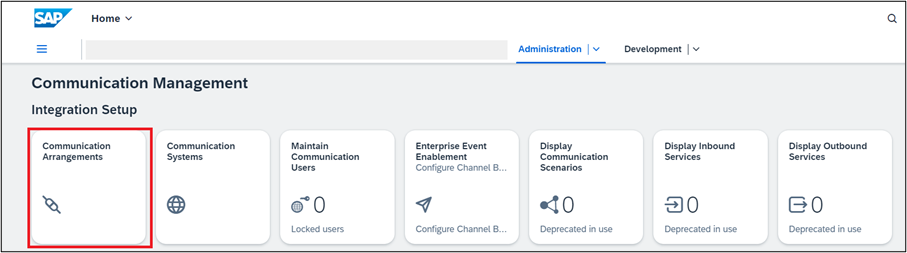

   • In the Fiori launchpad Open Communication Arrangement.



3. Click on New to create communication arrangement.



4. Communication Scenario SAP_COM_0863.

   Communication Scenario SAP_COM_0863 is a ready-to-use communication scenario provided by SAP for integration with SAP Build Process Automation.



5. Set Additional Properties.

   Once the scenario is selected pop-up window extends with pre-filled Communication Arrangement name and option to set additional properties, enter, or create Communication User and to enter service key.

   Click on Additional Properties, set given value, and click Close.

   Consumer Type (Workflow) - DEFAULT



   The consumer type is used to identify the default communication arrangement i.e., if the SAP Build Process Automation Communication Arrangement has Consumer Type (Workflow) set to DEFAULT then the system will try to trigger all workflows in SBPA by default. Therefore, default assignment can be done only on one Communication arrangement for a Consumer Type.

6. Create a New Communication User.

   Select a Communication User (of which you know the password) or create a new one to use for inbound communication (from SAP Build Process Automation to your BTP ABAP environment).

   • Click New to create a communication user.



   • Clicking on new navigates to the Create Communication User App. Enter the below info and click on Create.

     User Name: ZTEST_USER_SBPA Description: SBPA User Password: Click on Propose Password (Save the password for later use)



   Save the proposed password and user name as that would be required during creation of callback destination.

7. In the field Service key paste the SAP BUild Process Automation instance service key that we retrieved as part of ‘Get SAP Build Process Automation Service Key’ and click Create.



8. Communication Arrangement is saved.

   Save the highlighted API-URL for later use while creating callback destination.



Create a destination in the SAP BTP subaccount, to enable the inbound communication to the BTP ABAP environment. In addition, the destination must be enabled for use in SAP Build Process Automation.

The destination will be used for the callback to the SAP BTP ABAP environment from SAP Build Process Automation. The callback is triggered on the completion of workflow process on SAP Build Process Automation.

1. In the BTP Cockpit navigate to your development subaccount.



2. Choose Connectivity>Destination>Create Destination.



3. Choose Blank Template and enter the following data and click on Save.

   • Name: abap-cloud-dev-steampunk-canary (Any Name)

   • Type: HTTP

   • Description: SBPA to ABAP Callback Destination

   • URL: Enter the API-URL saved during Communication Arrangement creation. If not saved access the communication arrangement and copy the API URL displayed under Common Data > API-URL. It is the API URL for BTP ABAP Environment instance.

   • Proxy Type: Internet

   • Authentication: BasicAuthentication

   • User: Enter the Inbound Communication User created during Communication Arrangement creation.

   • Password: Enter the Password of the (inbound) communication user in the Communication Arrangement.

   • Additional Properties: Click on New Properties and add Additional Properties. sap.applicationdevelopment.actions.enabled → true. sap.processautomation.enabled → true



   The addition of Additional Properties sap.applicationdevelopment.actions.enabledand sap.processdevelopment.enabledenables the destination for use in SAP Build Process Automation.

1. Open the SAP Build Process automation from your subaccount.

   Subaccount > Instances and Subscriptions > Subscriptions > SAP Build Process Automation.

   • Click on SAP Build Process Automation to open the Application.



2. Navigate to Control Tower > Destinations.



3. Choose Destinations > New Destination.



4. Select the destination that you have created in SAP BTP cockpit and click Add.
