Add the Shopping Cart Fiori Application to FLP (2023)

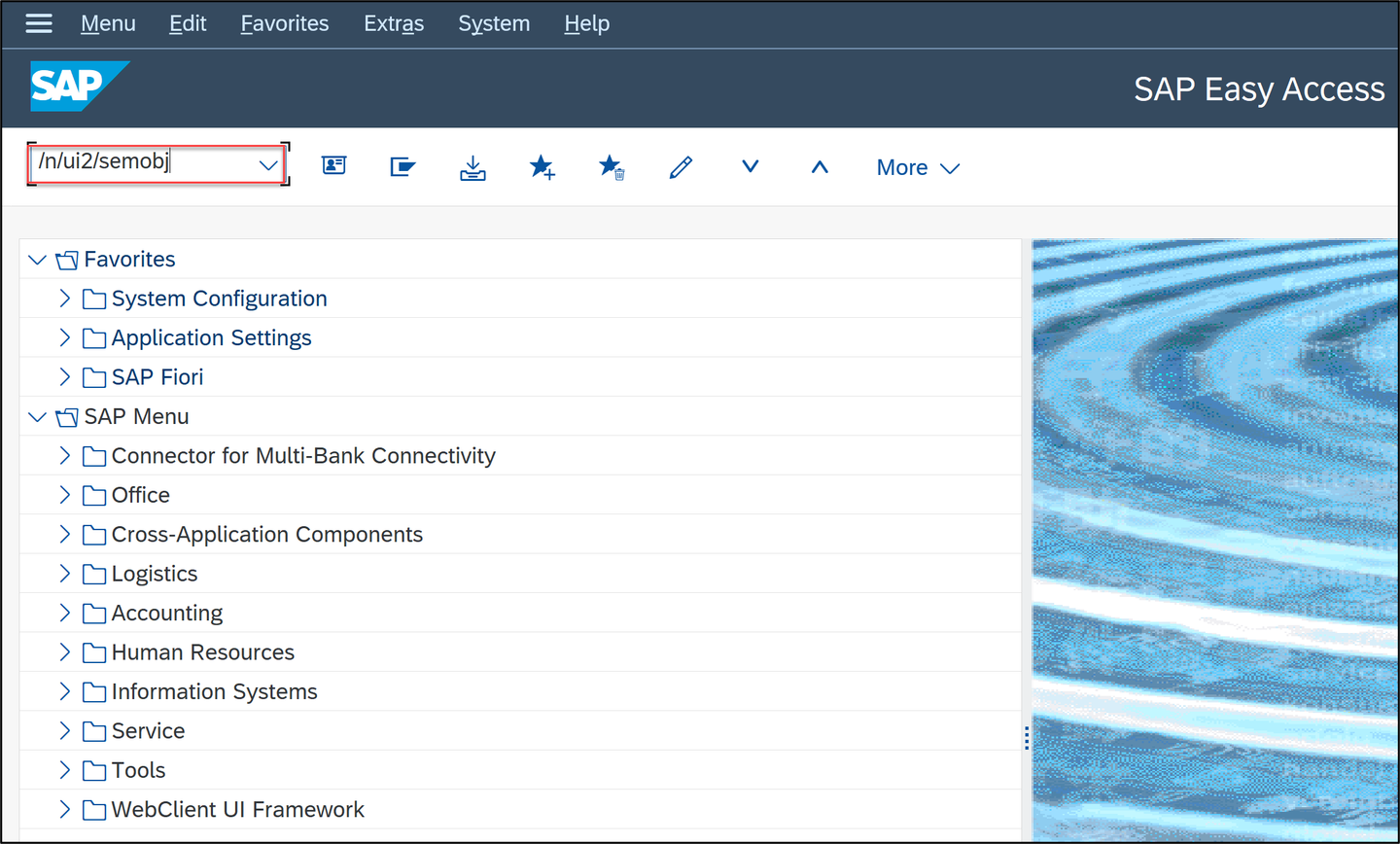

1. Open SAP Logon and log into your system. Execute following transaction to create a semantic object /ui2/semobj. You also need to add /n before your transaction.

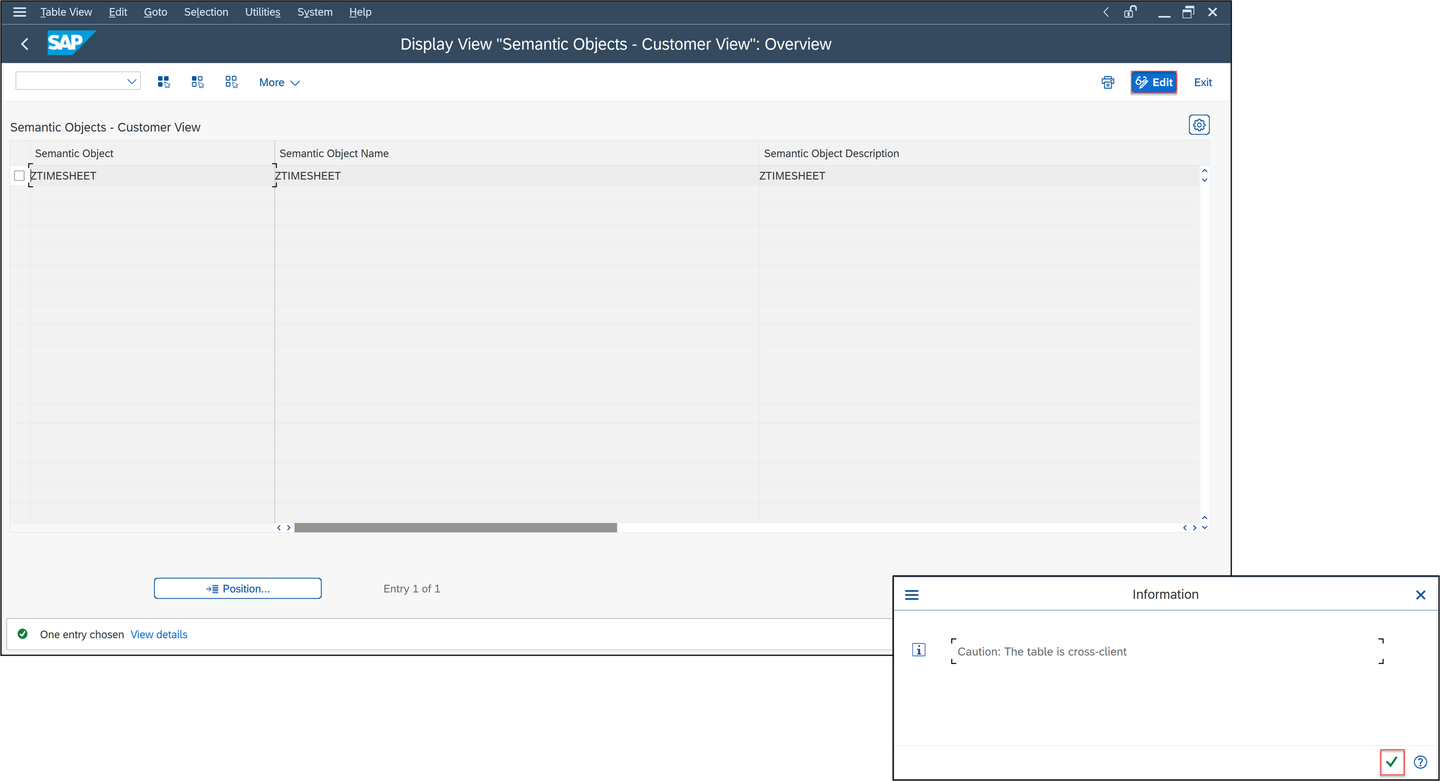

2. Click Edit and select the check mark.

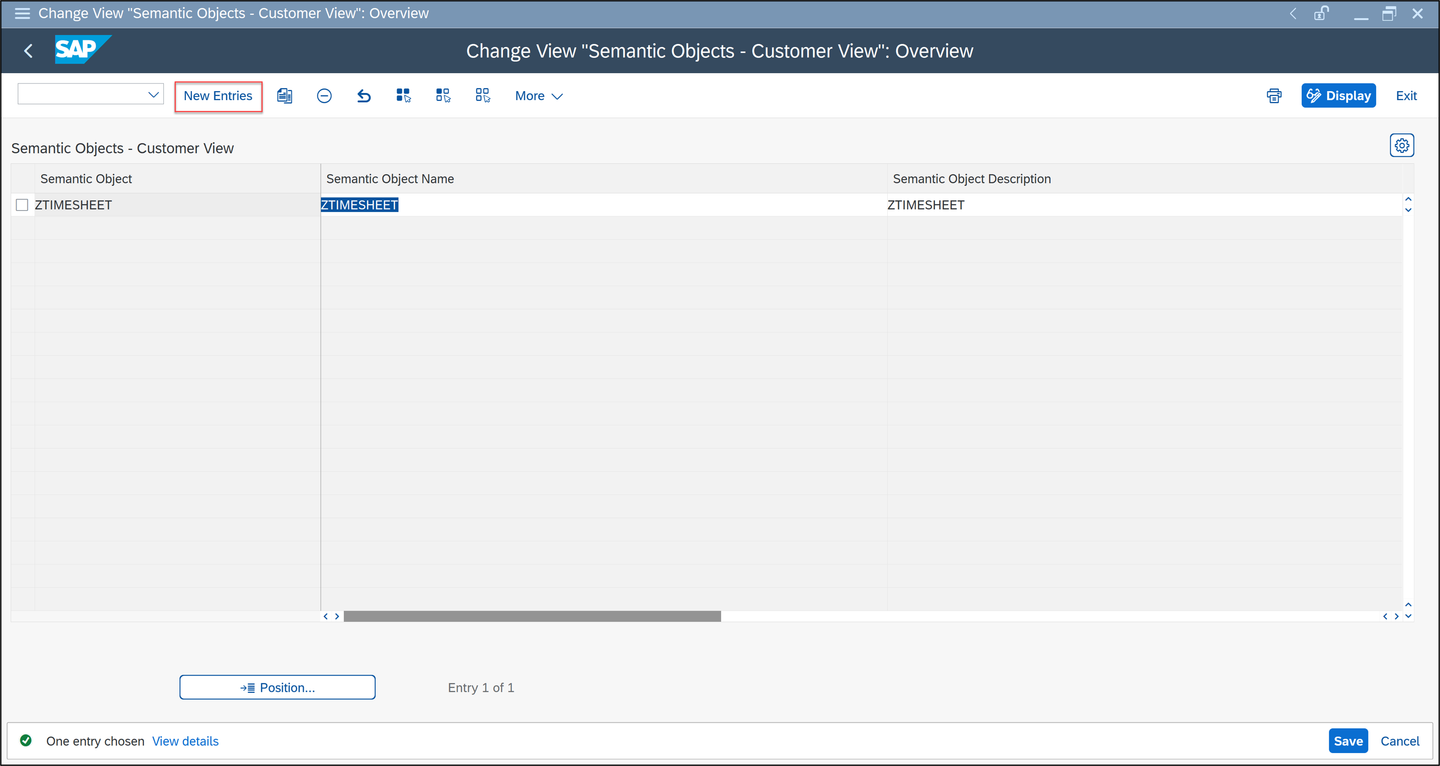

3. Click New Entries.



4. Add your semantic object:

   • Semantic Object: z_shopping_cart_tier1_###
   • Semantic Object Name: z_shopping_cart_tier1_###
   • Semantic Object Description: Shopping Cart ###

   Click Save.

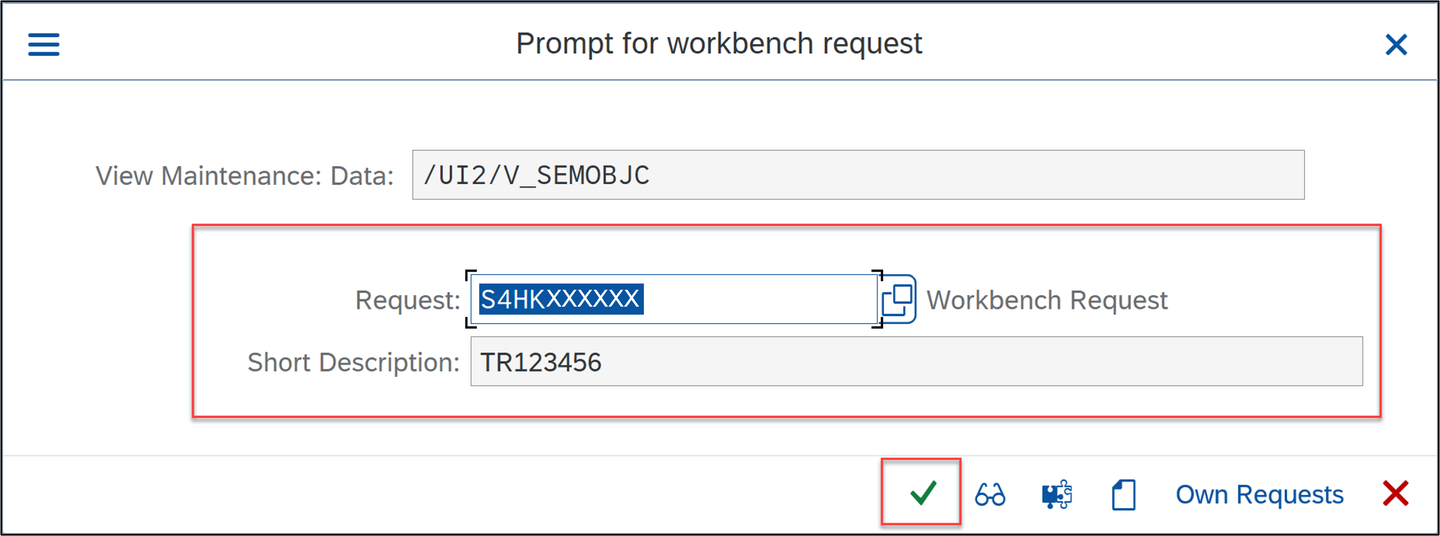

5. Select and confirm your transport request.



Find here the documentation on Best Practices for Managing Catalogs.

In this step, you will create a business catalog. The SAP Fiori business catalog is client-dependent, so it is part of the customizing.

1. Execute following transaction to create a business catalog /ui2/flpcm_cust. You also need to add /n before your transaction.



2. Search for technical catalog SAP_TC_UI5_REPO_UIAD and press Go to check the existing content.



3. Now you can see the existing content of generic technical catalog SAP_TC_UI5_REPO_UIAD. During UI deployment automatically an app descriptor item was created and assigned to this technical catalog. Click Create to create a new business catalog.



4. Create a new catalog:

   • New ID: z_bc_shopcart_###
   • New Title: Business Catalog - Shopping Cart ###



   Select your transport request and description. Select the check mark.

> **Hint**: The business catalog has the naming convention `BC`.

5. Click Add Tiles/Target Mappings and select Add Tiles/TMs to Selected Catalog.



6. Search for z_shopping_cart_tier1_###, press Go, select your entry and click Add Tile/TM Reference.



7. Check your result.

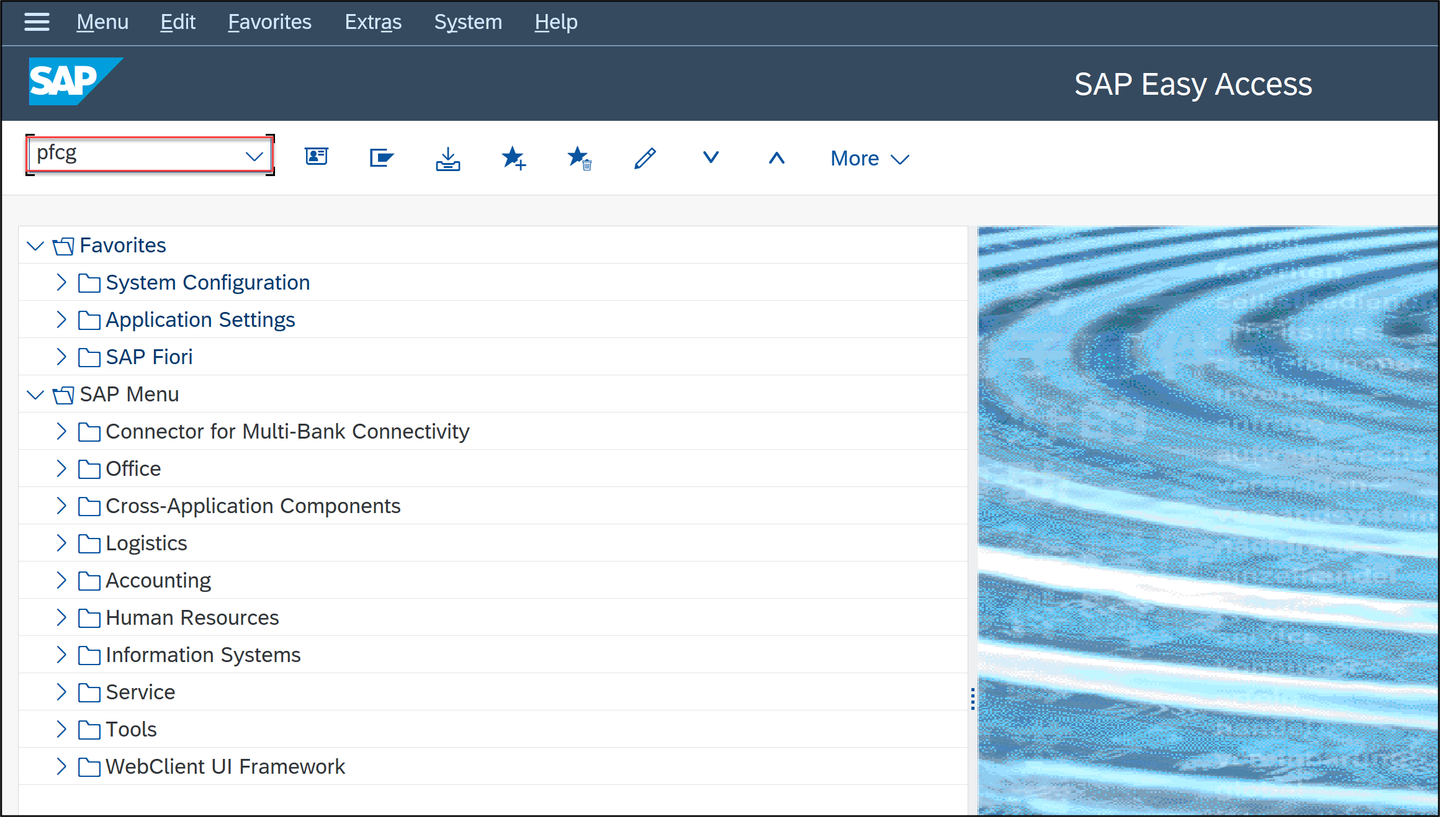

1. Execute following transaction to create a business role and assign it to your user pfcg.



2. Enter Z_BR_SHOPCART_### as Role and click Single Role.



3. Enter a description and click Save.



4. Navigate to Menu and select Transaction > SAP Fiori Launchpad > Launchpad Catalog.



5. Enter Z_BC_SHOPCART_### as Catalog ID, select the check mark and click save.



6. Navigate to Authorization and select the edit icon for Change Authorization Data.



7. Click the icon.



8. Select the check mark.



9. Go back.

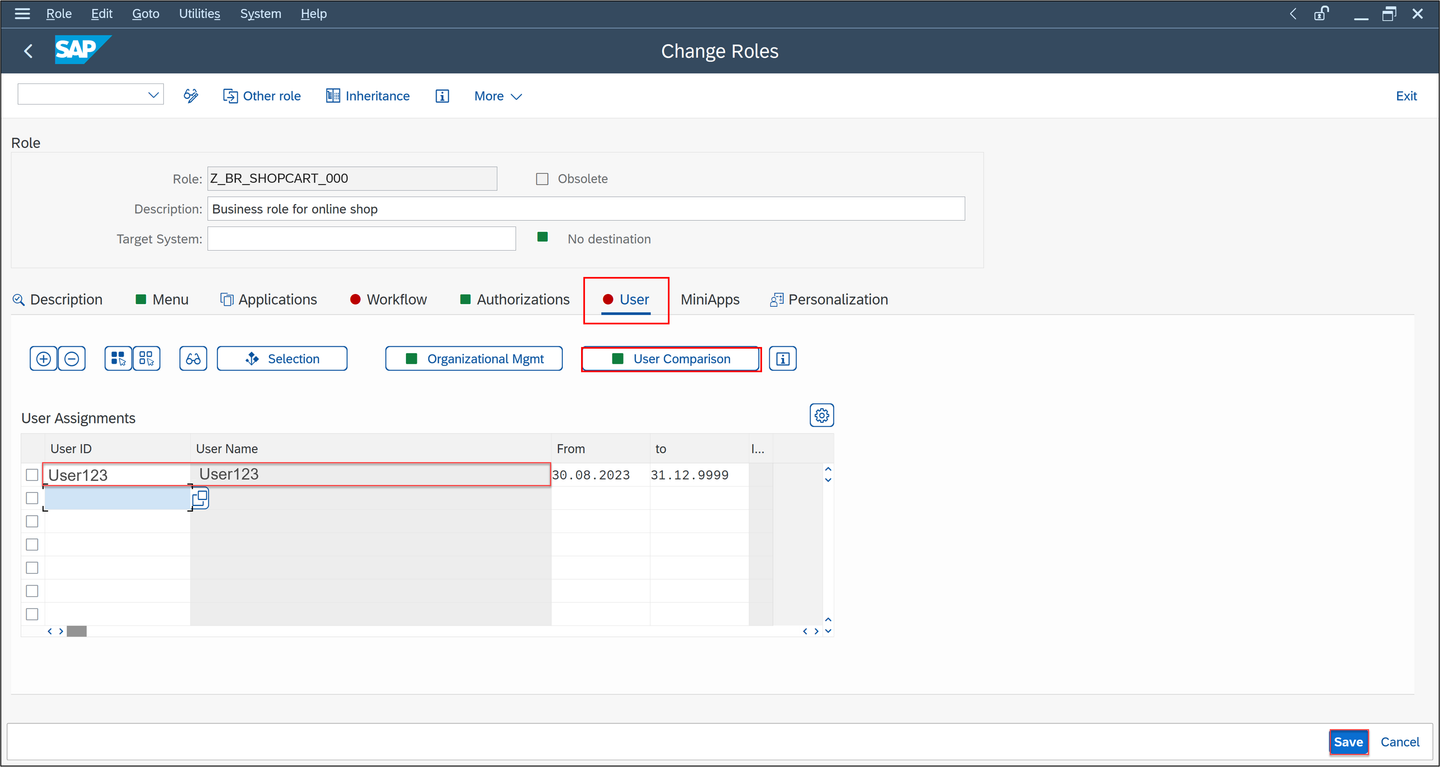

10. Navigate to User, enter your user, click Save and click User Comparison.



1. Execute following transaction to run an app from SAP Fiori Launchpad /ui2/flp. You also need to add /n before your transaction.



2. Log in with the user you assigned the business role Z_BR_SHOPCART_### to.



3. Click your user on the top right corner and select App Finder.



4. Search for Shopping Cart ### and press the + symbol.



5. Select My Home to add your application to the my home page.



6. Go to your home page and now you can see your application. Click your application and check your result.



1. Execute following transaction to create spaces and pages /ui2/flp. You also need to add /n before your transaction.



2. Search Manage Launchpad Spaces and select it.



3. Click Create.



4. Create a new space and page:

   • Space ID: z_shopping_cart_tier1_###
   • Space Description: Space for Shopping Cart ###
   • Space Title: Shopping Cart ###
   • Check mark Also create a page
   • Page ID: z_shopping_cart_tier1_###
   • Page Description: Page for Shopping Cart ###
   • Page Title: Shopping Cart ###



   Select your transport request and click Create and assign your transport request.

5. Click Save.



6. Navigate to your page z_shopping_cart_tier1_###.



7. Inside your page z_shopping_cart_tier1_### click Edit to add your page content.



8. Select the menu and click Select Catalogs.



9. Search for your catalog z_bc_shopcart_###, select it and click Select.



10. Select your business catalog z_bc_shopcart_### and click Add.



11. Enter the section title: Shopping Cart Section and click Save.



1. Execute following transaction pfcg to open your business role and add the newly created space and page to it.



2. Enter Z_BR_SHOPCART_### as Role and click the edit symbol.



3. Go back and navigate to Menu again. Select the arrow > SAP Fiori Launchpad > Launchpad Space.



4. Enter Z_SHOPPING_CART_TIER1_### as Space ID and select the check mark.



5. Add a description and click Save.



1. Execute following transaction to run an app from SAP Fiori Launchpad /ui2/flp. You also need to add /n before your transaction.



2. Navigate to Shopping Cart ### and select your tile to check your result.



Find here the documentation on SAP Fiori Launchpad.
