Setup Generative AI Hub in SAP AI Launchpad
Set up Generative AI Hub in SAP AI Launchpad.
Overview
You will learn
- In this tutorial, you’ll learn how to set up SAP AI Launchpad and connect it to SAP AI Core to get started with orchestration in the Generative AI Hub.
Prerequisites
Prerequisites
- A BTP global account If you are an SAP Developer or SAP employee, please refer to the following links ( for internal SAP stakeholders only ) - How to create a BTP Account (internal) SAP AI Core If you are an external developer or a customer or a partner kindly refer to this tutorial
- A BTP global account, For more details, refer to: BTP global account
- To continue this tutorial, you should have a BTP subaccount
Steps
Pre-read
In this tutorial, you’ll learn how to set up SAP AI Launchpad and connect it to SAP AI Core to get started with orchestration in the Generative AI Hub.
SAP AI Launchpad is a service which you can link to your BTP global account. The launchpad offers an easy-to-use interface to manage AI workflow administration, processes, and tasks.
The Generative AI Hub incorporates generative AI into your AI activities in SAP AI Core. You can access Generative AI Hub via SAP AI Launchpad.
Boosters is available for SAP AI Launchpad. Boosters are a set of guided interactive steps that enable you to select, configure, and consume services on SAP BTP. In this tutorial, we’ll use the SAP AI Launchpad booster to create the subscription for SAP AI Launchpad in your subaccount with the standard plans.
Note: SAP AI Launchpad is optional, but is the recommended interface for use with SAP AI Core.
Note: SAP AI Launchpad is optional, but is the recommended interface for use with SAP AI Core.
Entitlements and quota are managed at the global account and directory levels, distributed to directories and subaccounts, and consumed by the subaccounts. See also Entitlements and Quotas.
Entitlements are your right to provision and consume a resource. They refer to what you’re entitled to use (for example, which services and service plans).
Quota is the numeric quantity that defines the maximum allowed consumption of that resource. In other words, how much of a service plan you’re entitled to use.
Open the SAP BTP cockpit, access your global account and go to your subaccount.

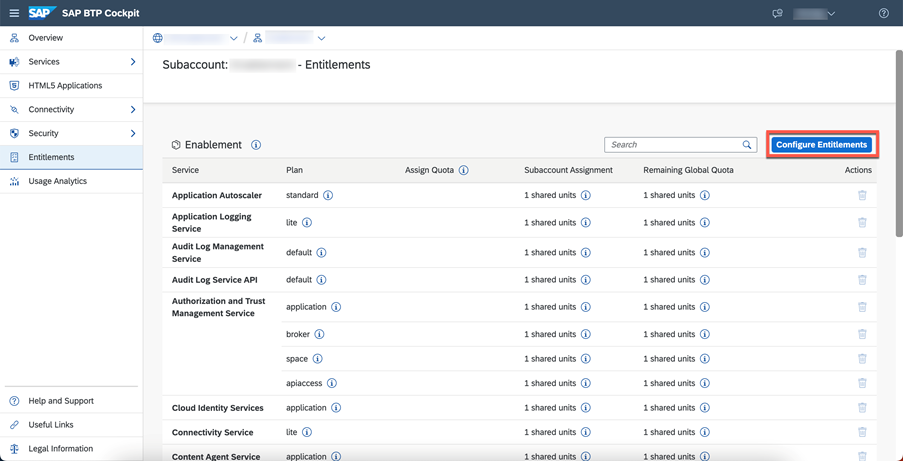

Check the entitlements for your subaccount by clicking Entitlements.

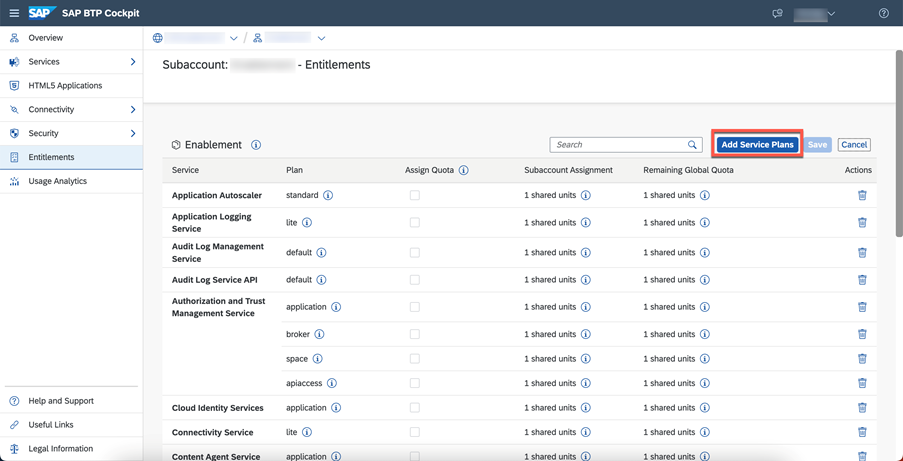

Click Configure Entitlements > Add Service Plans.
Select SAP AI Launchpad and the standard service plan.
Save your new entitlement.

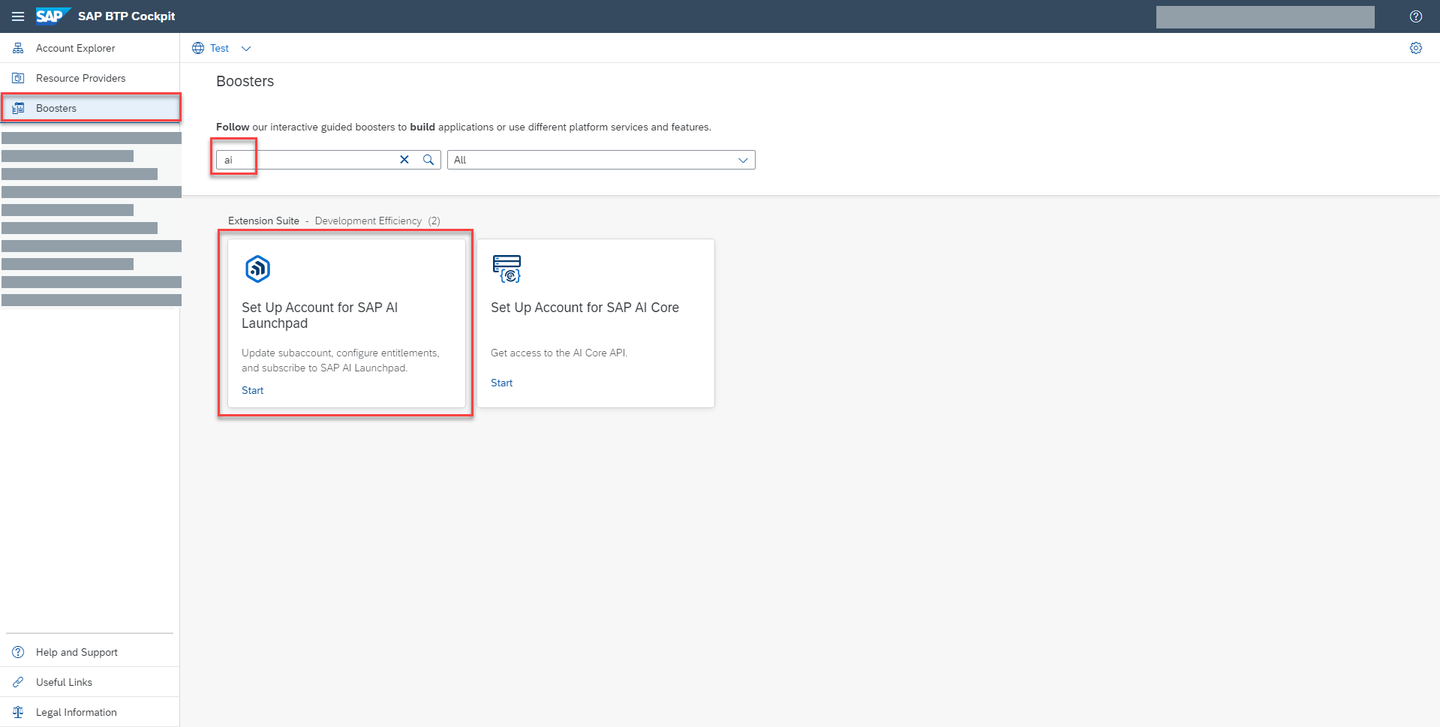

Choose Boosters from the navigation pane, and then choose the booster for SAP AI Launchpad from the selection.

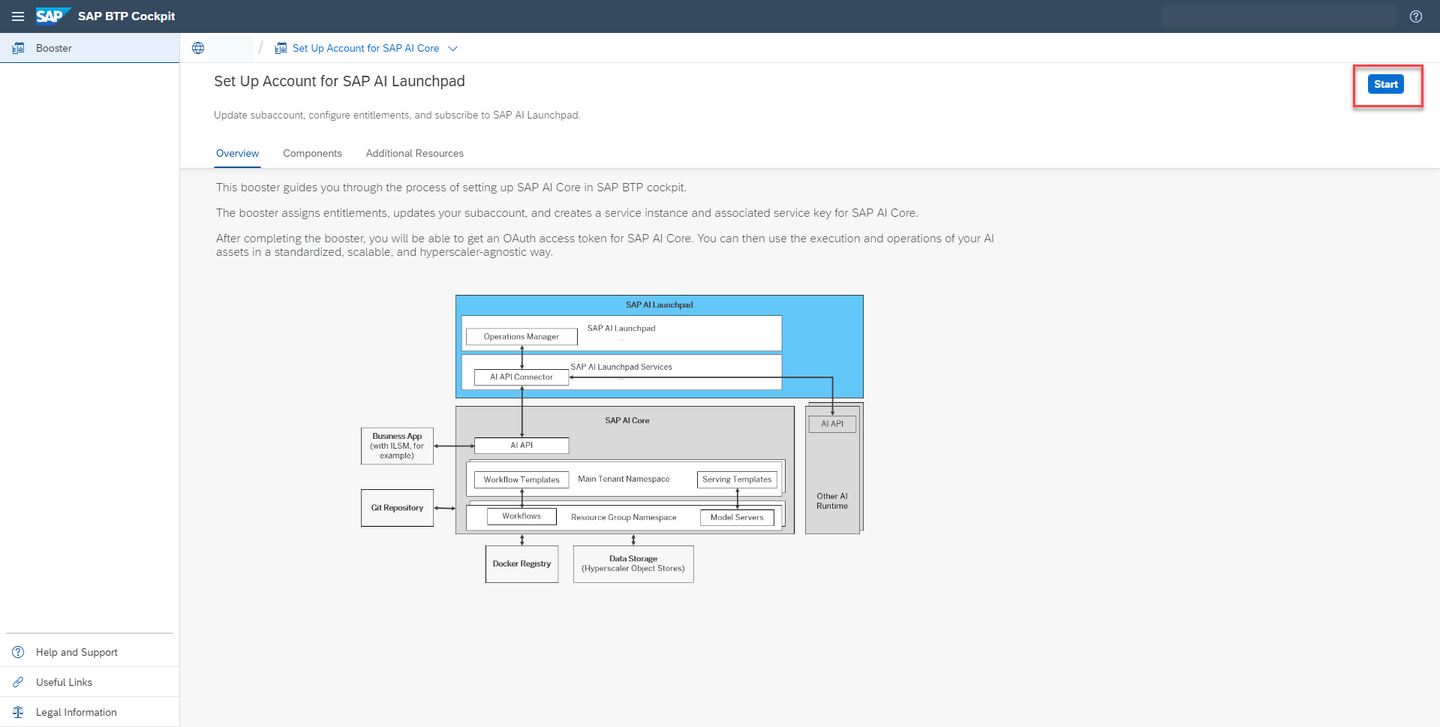

Click Start when you are ready.

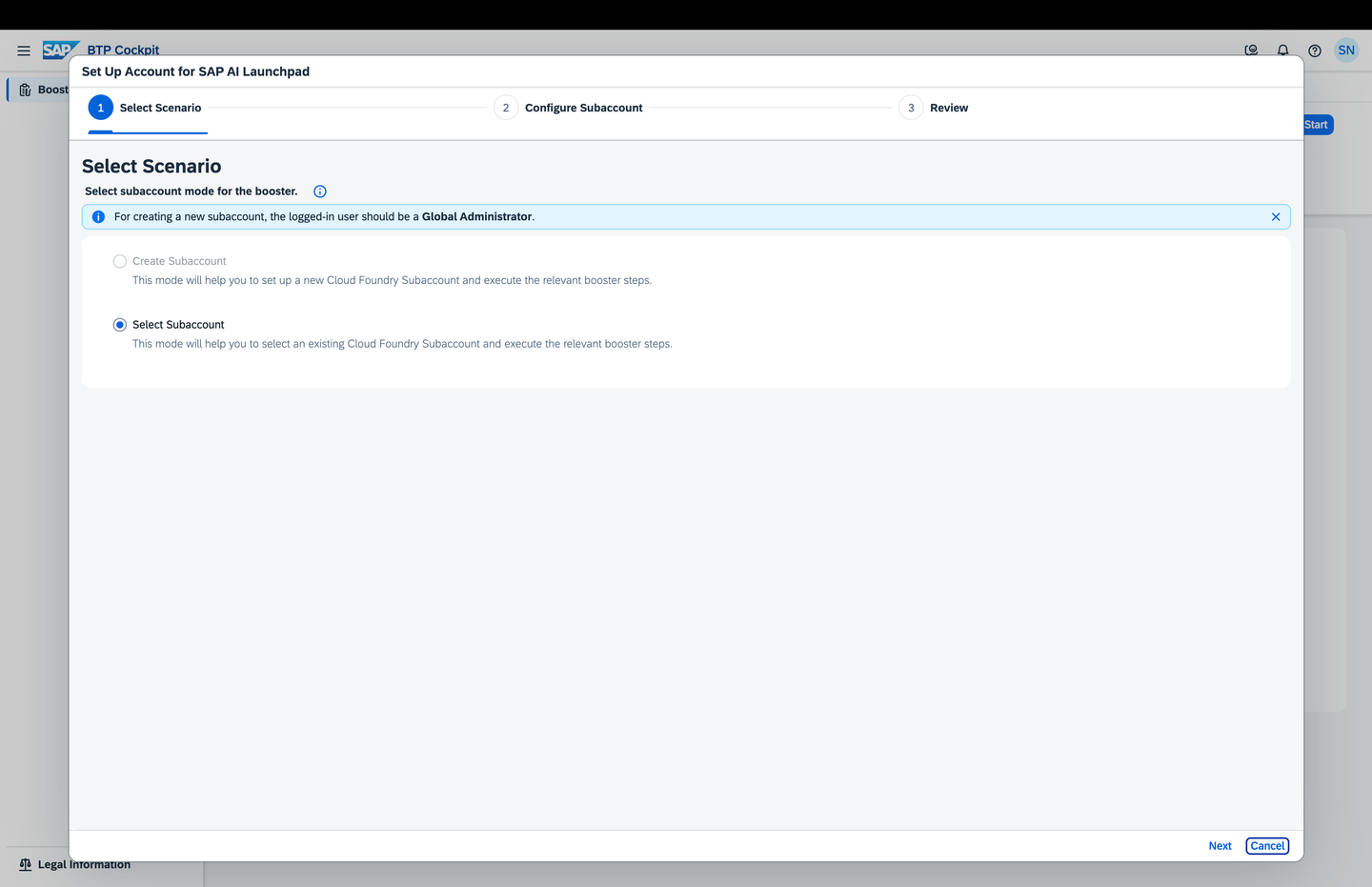

In the Scenario Section, choose Select Subaccount option and click Next.

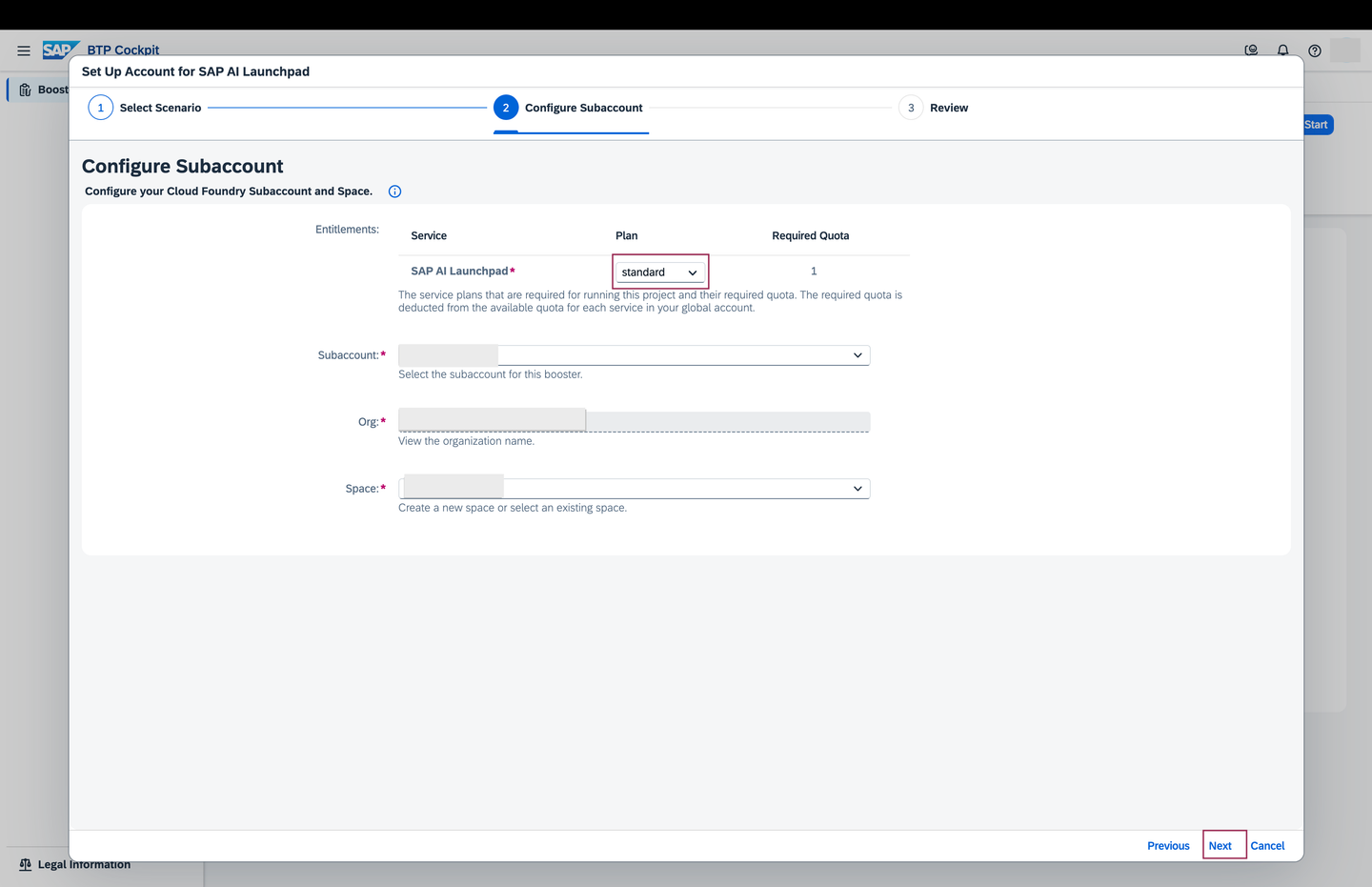

In the Configure Subaccount, choose standard plan, your subaccount and space where you want to provision SAP AI Launchpad and click Next

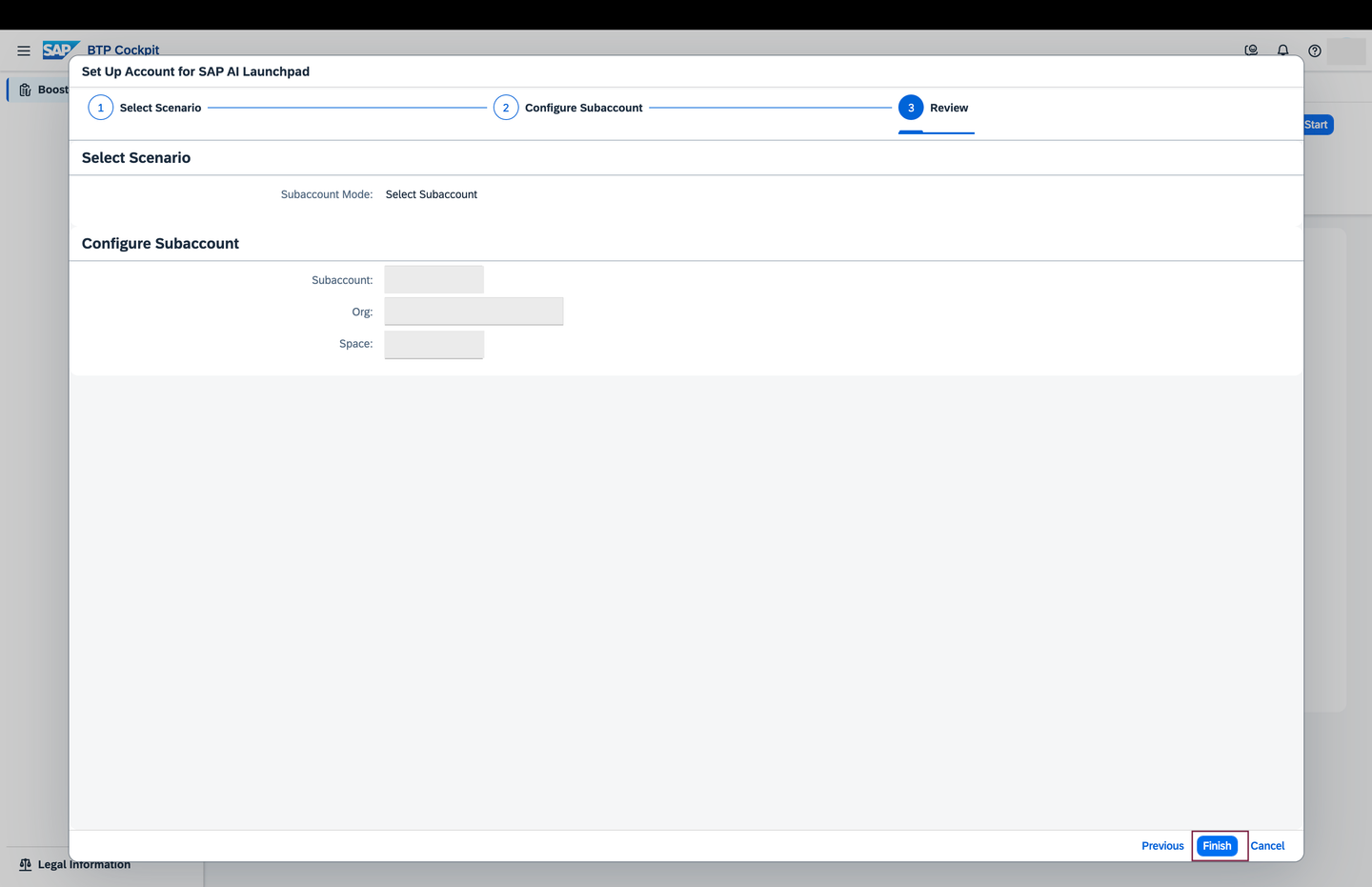

Review the subaccount and entitlement details you have selected previously and click Finish.
wait until setup completes. Once completed, navigate to your subaccount.
View your SAP AI Launchpad instance by navigating to Instances and subscriptions. To see the details of your new instance, click the chevron on the entry.
Click on the Workspaces app. Click Add to create connection to your SAP AI Core instance.
Enter the name my-ai-core for the connection . Fill other details from your SAP AI Core service key as marked in the image.
INFORMATION If you find that a connection already exists in your SAP AI Launchpad then you may add your connection under a different name. You may add any number of connections to SAP AI Core instances in your SAP AI Launchpad (this may not be case if you are using Free Tier).
Click on my-ai-core under the Workspaces app. You will observe the connection name on the header. You can find new apps on the side navigation bar, like Generative AI Hub.
Select default from the Resource Groups Pane. Again this selection is updated in the header.
As part of the SAP AI Core onboarding process, an orchestration deployment is automatically created in the default resource group.
This means you can start using orchestration in the Generative AI Hub right away—no need to create a separate deployment.
Click on Generative AI Hub > Orchestration
You can proceed to the Orchestration Tutorial to learn how to consume generative AI models using the orchestration capabilities available in the Generative AI Hub.
