Create and Configure Forms

First, you will create a trigger form that will start the business process. For that, you have to open your process in the process builder and add a new form.

1. Choose Add a Trigger in the Trigger settings.



2. Choose Submit a Form.



3. Choose Blank form.



4. In the pop-up window for new form:

   • Enter the Name: Order Processing Form
   • Enter a Description: Form to collect order details
   • Choose Create.



   The form will be added as the Start Trigger.

5. To design the form, choose the three dots and select Open Editor.



6. You will now design the Form with available layout and input fields options. First, drag-and-drop the form layout fields and enter the given names and field settings as below:

   Form Fields	Field Settings with Label
   Headline 1	Order Approval Request Form
   Paragraph	Please provide the necessary information of your order and submit for approvals.

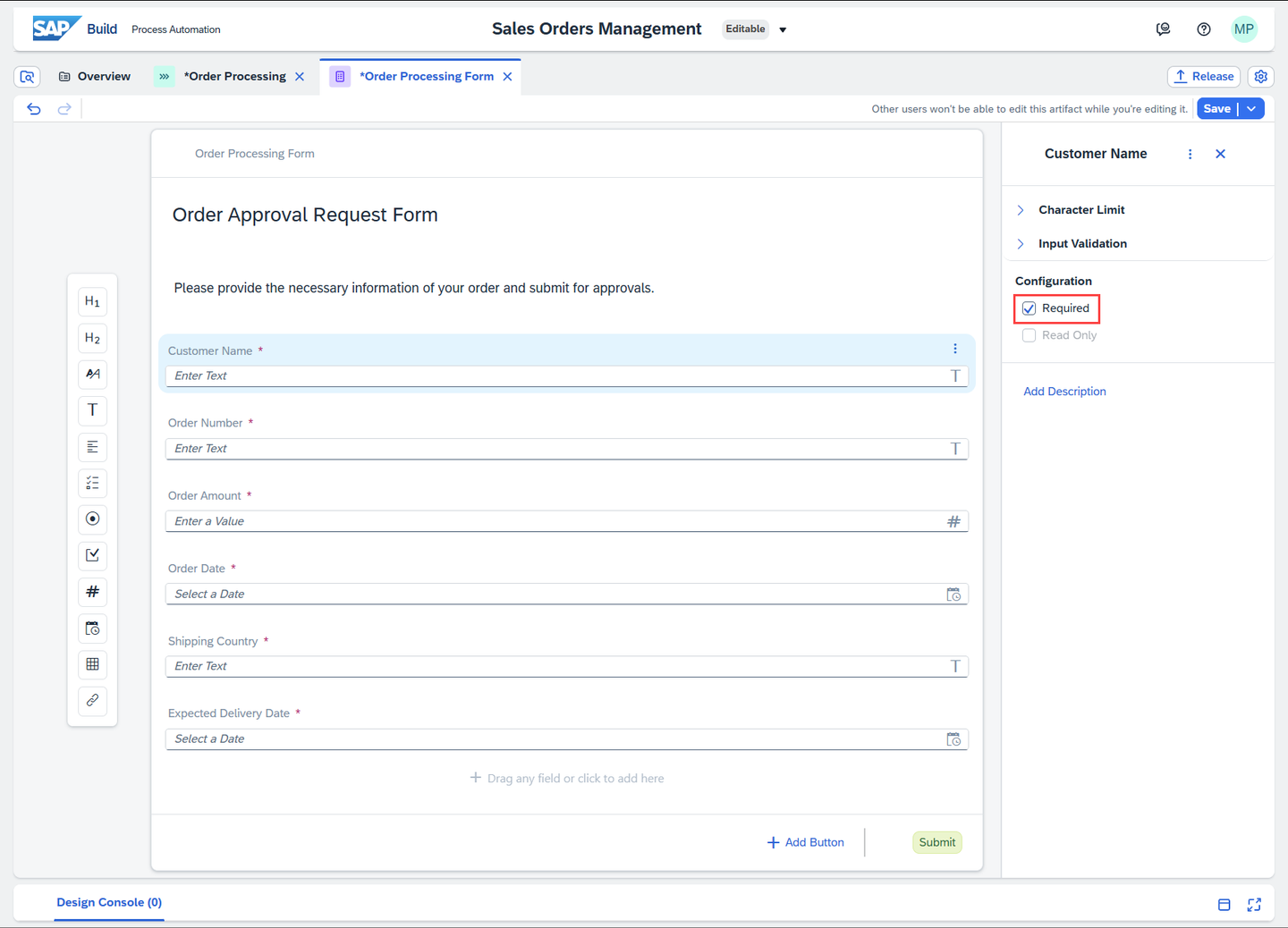

7. Now, add Input Fields, enter the labels and select the Required checkbox.

   Form Fields	Field Settings with Label
   Text	Customer Name
   Text	Order Number
   Number	Order Amount
   Date	Order Date
   Text	Shipping Country
   Date	Expected Delivery Date

8. The trigger form is ready. Save the form using the Save button on the top-right corner of the screen.



   Now, you will design the process with more activities related to approval of the sales order.

The approval form will be used to get faster and easier approvals from the business users, to take informed decisions, and get rid of sending emails. These approval forms could be about approving or rejecting sales orders, invoices, onboarding, IT requests, etc. The forms are then converted into tasks in an automated workflow which will appear in the My Inbox of the user.

You can create these different forms using the Form Builder embedded in the process builder using different form field options. You can design and modify them without any coding.

1. Go to the Order Processing process and choose + below the Trigger.



2. Choose Approval.



3. Choose Blank Approval.

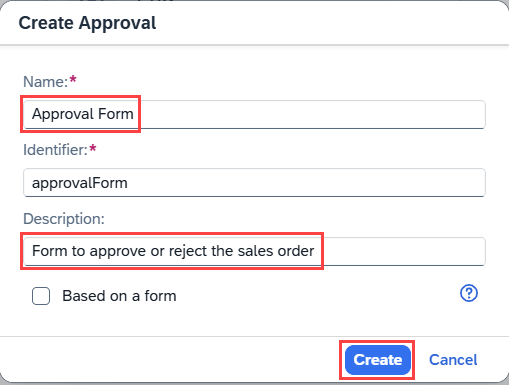

4. In the Create Approval dialog box, do the following:

   • In the Name field enter: Approval Form
   • In the Description field enter: Form to approve or reject the sales order
   • Choose Create



5. Choose Open Editor of the Approval Form.



6. Design the Approval Form in the form builder by dragging-and-dropping fields into the form editor and configuring respective field settings.

   Form Fields	Field Settings with Label
   Headline 1	Approve Sales Order
   Paragraph	A new order has been received. Please review and confirm whether the requirements can be met or not.
   Paragraph	Sales Order Details:



7. Add Input Fields, enter the labels and select the Read Only checkbox.

   Form Fields	Field Settings with Label
   Text	Customer Name
   Text	Order Number
   Number	Order Amount
   Date	Order Delivery Date



8. Add Input Fields and enter only the labels.

   Form Fields	Field Settings with Label
   Paragraph	Supplier Acknowledgment
   Checkbox	I acknowledge that we have received your order and will process it based on the availability
   Text Area	Message to buyer:

9. Save the form.



1. Go back to the process builder to map the process content with the form input fields.

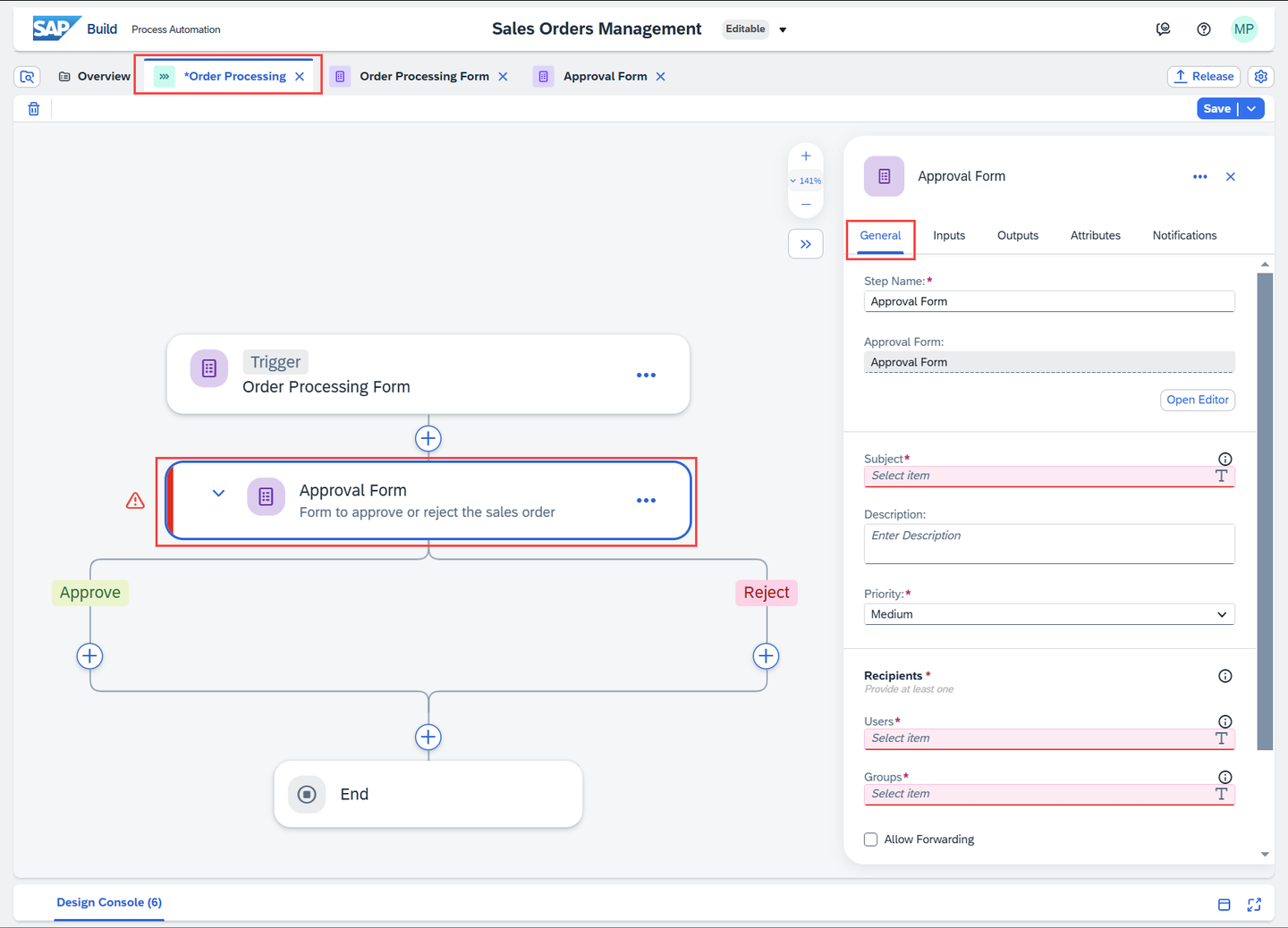

2. Select the Approval Form to configure the General information section.



3. In the Subject field, do the following:

   • Enter Review and approve order
   • Select Order Number from Order Processing Form (Trigger)
   • Enter from
   • Select Customer Name from Order Processing Form (Trigger)
   • Enter company



   The Subject configuration of the form will be shown when this task appears in the MyInbox.

4. In the Recipients section, under Users select Process Started By from Process Metadata.



   This form will appear as the task in the MyInbox of the given Recipients to take action.

5. In the Due Date section:

   • Select Static Duration as type of due date
   • Enter 2 Days as the duration

   What is going on?

   This means that the due date to approve or reject the form will be set to 2 days.



   As the task appears in the MyInbox, there will be duration information shown to the recipients like Overdue if the task was not completed in 2 days, or within 1 day if the task is supposed to be completed in 1 day etc.

6. Similarly, go to the Inputs section and map the different input fields, which were marked as read-only in the approval form, by selecting the respective Process Content entry.

   Form Input Fields	Process Content Entry
   Customer Name	Customer Name
   Order Delivery Date	Expected Delivery Date
   Order Amount	Order Amount
   Order Number	Order Number

   The process content will highlight the entries with the same data type of the input field. For example: if the input field is of Number type then Process Content will show only number-type entries.

7. Save the process.



   The process should look like the following:



After the user approves or rejects the request, the next step is to create notifications. These notifications will inform the requester whether their sales order is approved or rejected, and will be sent either via an email or through the form. They will appear in the inbox of the requester as a task.

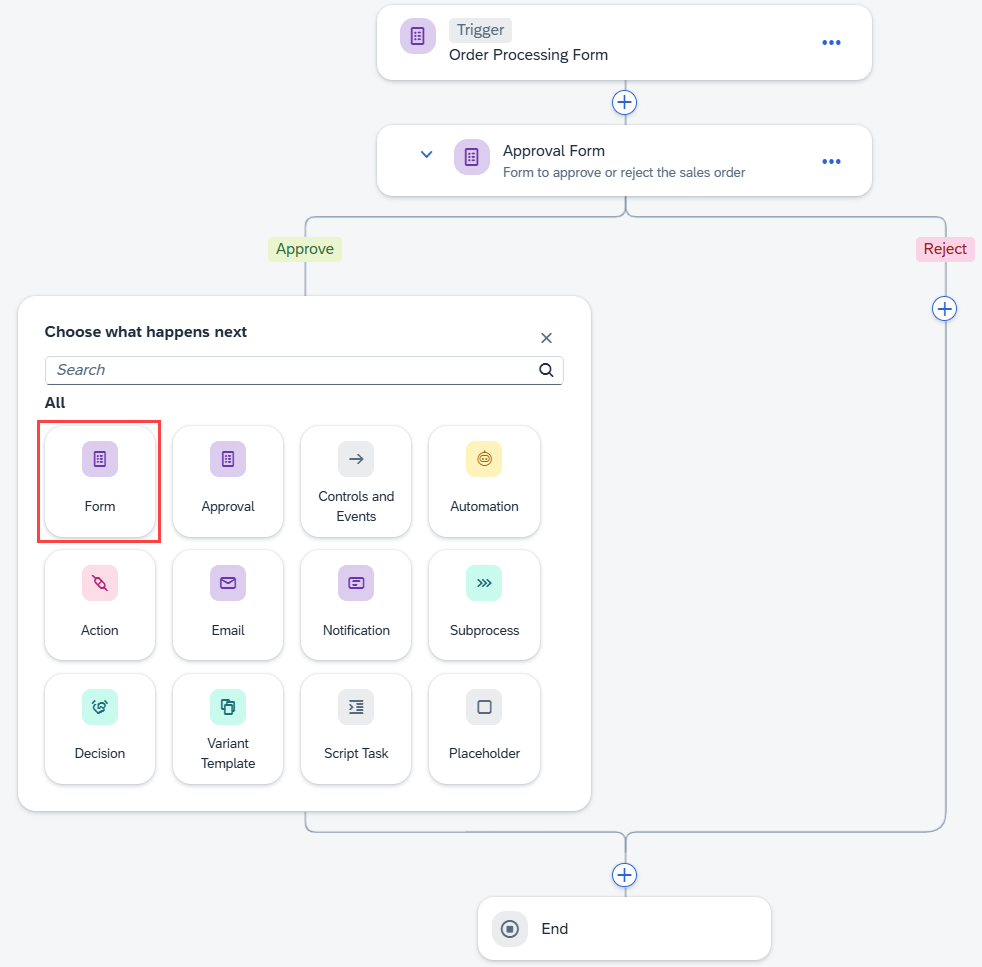

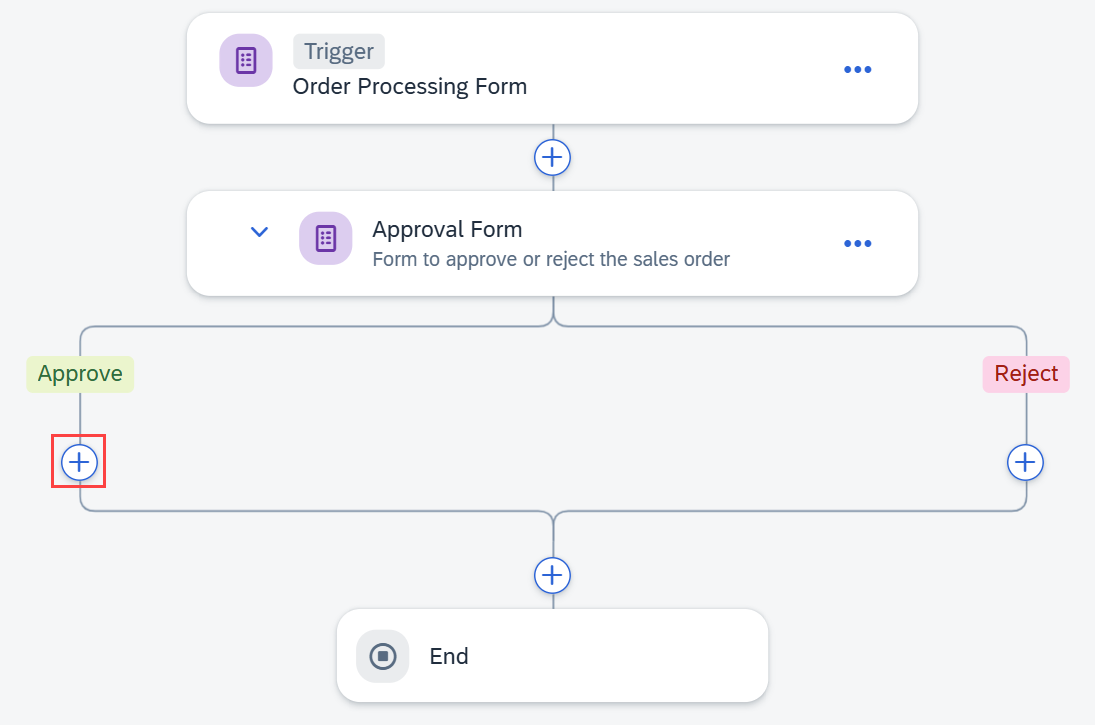

1. To add a confirmation to the process, select + below the Approve option.



2. Choose Form.



3. Choose Blank Form.



4. In the Create Form dialog box, do the following:

   • In the Name field, enter Order Confirmation Form
   • In the Description field, enter Notification form to inform whether the sales order is approved by the supplier
   • Choose Create



5. Choose Open Editor of the form.

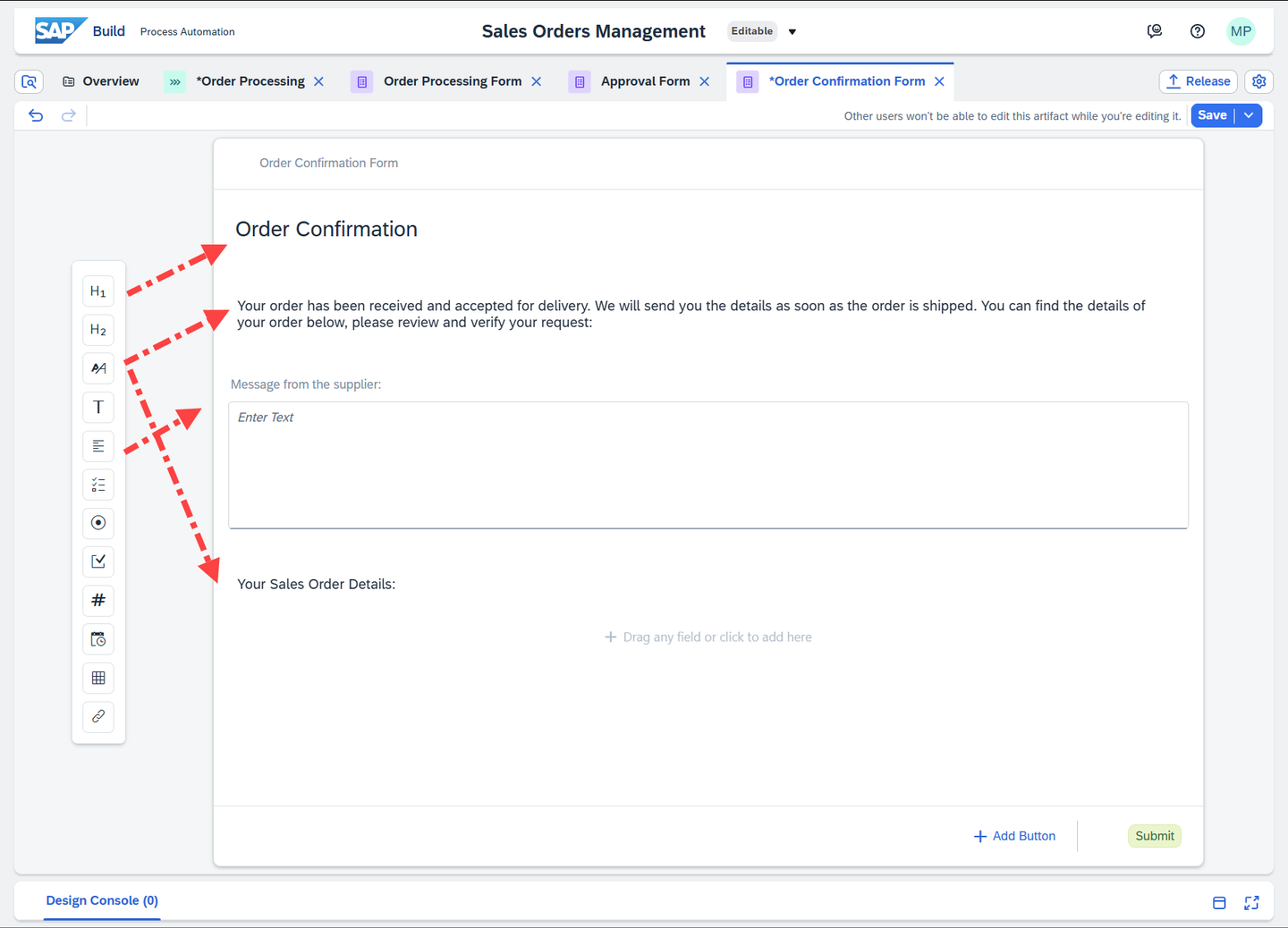

6. In the form builder, design the form to notify the requester of the order confirmation. Add the following Layout Fields:

   Form Fields	Field Settings with Label
   Headline 1	Order Confirmation
   Paragraph	Your order has been received and accepted for delivery. We will send you the details as soon as the order is shipped. You can find the details of your order below, please review and verify your request:
   Text Area	Message from the supplier:
   Paragraph	Your Sales Order Details:



7. Add below Input Fields, enter the labels and select the Read Only checkbox.

   Form Fields	Field Settings with Label
   Text	Order Number
   Number	Order Amount
   Date	Expected Delivery Date

8. Save the form.



9. Go back to the process builder to map the process content with the form input fields.

10. Select the Order Confirmation Form to configure the General information section.

11. In the Subject field, do the following:

    • Enter Your order
    • Select Order Number from Order Processing Form
    • Enter has been successfully received

12. In the Users section, under Recipients, select Process Started By from Process Metadata.



13. Go to the Inputs section and map the different input fields, which were marked as read-only, with the respective process content entries.

    Form Input Fields	Process Content Entry
    Order Number	Order Number
    Message from the supplier	Message to buyer
    Expected Delivery Date	Expected Delivery Date
    Order Amount	Order Amount

    The process content will highlight the entries with same data type of the input field. For example: if the input field is of Number type then Process Content will show only number-type entries.

14. Save the process.



    With this you completed designing and configuring the confirmation notification form.

    You can copy the same form to create another form to send a rejection notification to the requester. If copy is not available then create the form in the same way and modify the texts wherever relevant as shown below.

15. To add the new rejection form, you will use the Duplicate feature. Select the Overview.

    Duplicate feature is used to copy artifacts within the Business Process whereas Copy feature is used to copy artifacts across the Business Processes.



16. Find Order Confirmation Form under the Artifacts section and choose Duplicate.

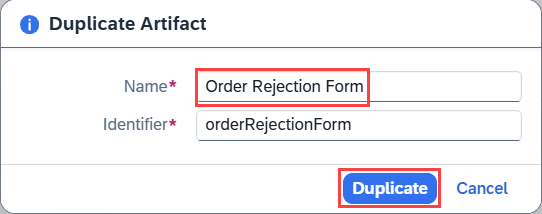

17. In the Duplicate Artifact pop-up window, change the name to Order Rejection Form and select Duplicate.



18. The form is automatically opened in the form builder. Change the order rejection form in the form builder to reflect the data for rejection case.

    Form Fields	Field Settings with Label
    Headline 1	Order Rejection
    Paragraph	We are sorry to inform you that your order cannot be accepted. Any inconvenience caused due to the refusal of the order is regretted. You can find the reason of the rejection and the details of your order below, please confirm the request:

19. Position the following field after Expected Delivery Date.

    Form Fields	Field Settings with Label
    Paragraph	Please press the SUBMIT button to acknowledge the order status.

20. Save the form.

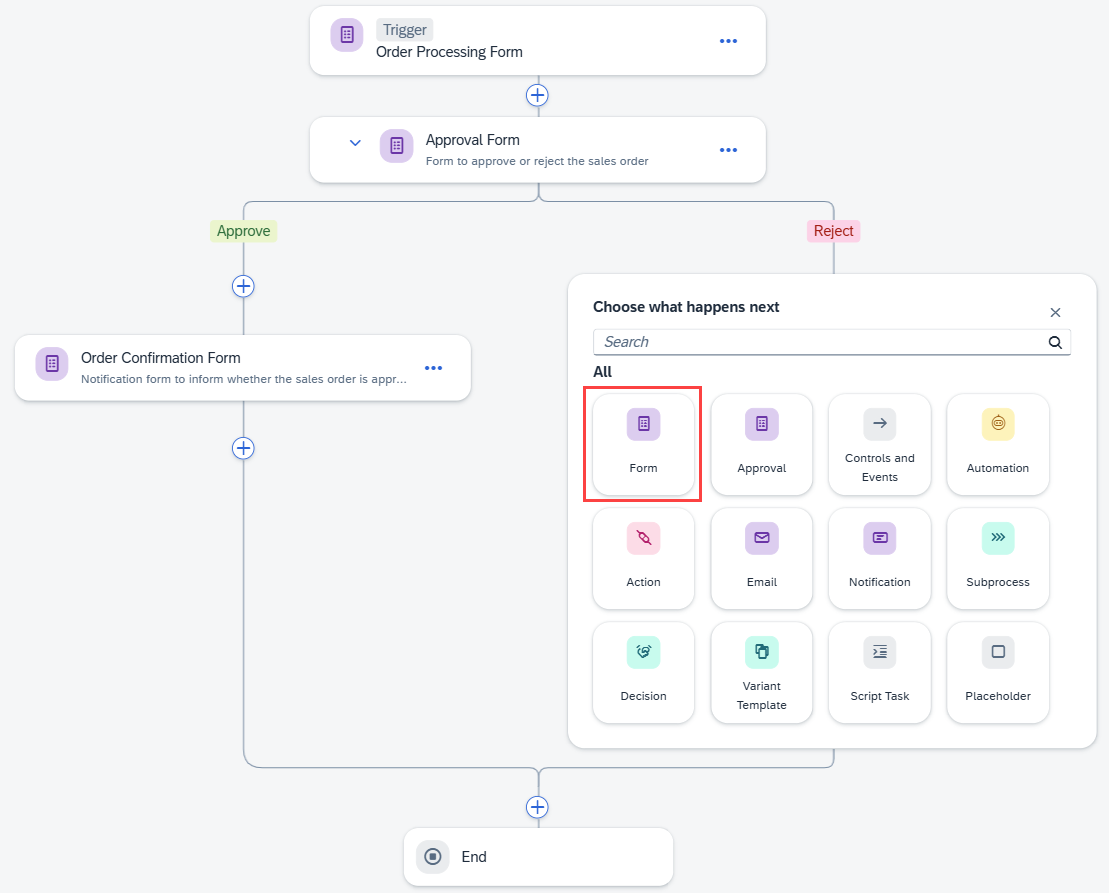

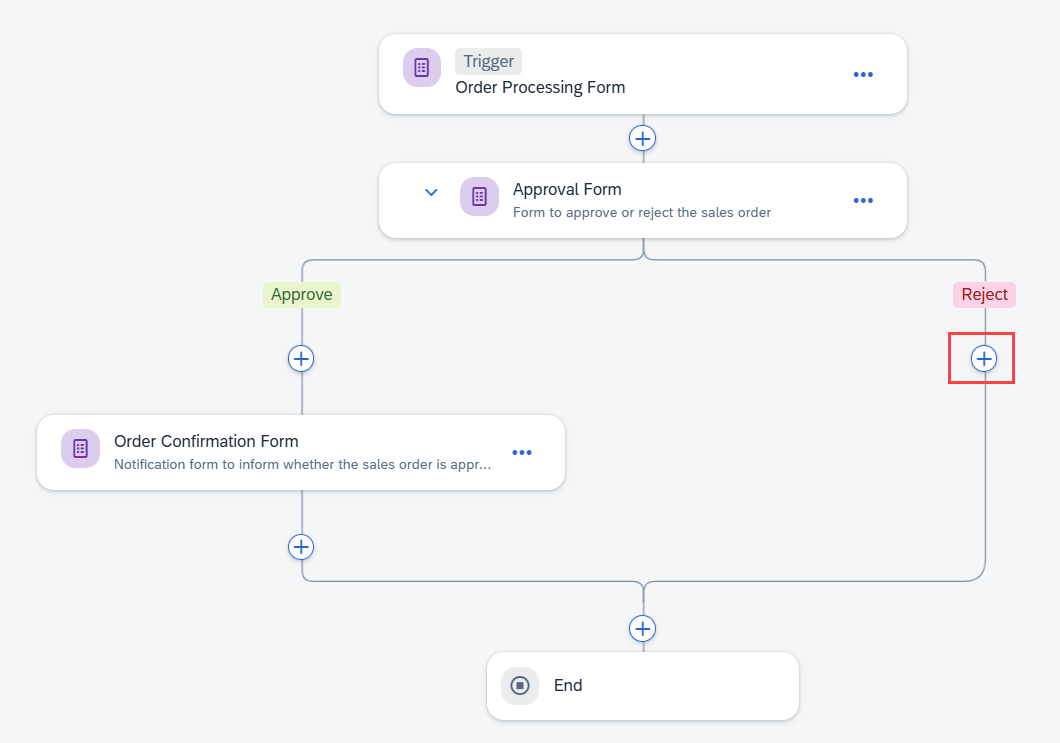

21. Go back to the process builder and add the order rejection notification form to the process. Select + below the Reject option.



22. Choose Form.

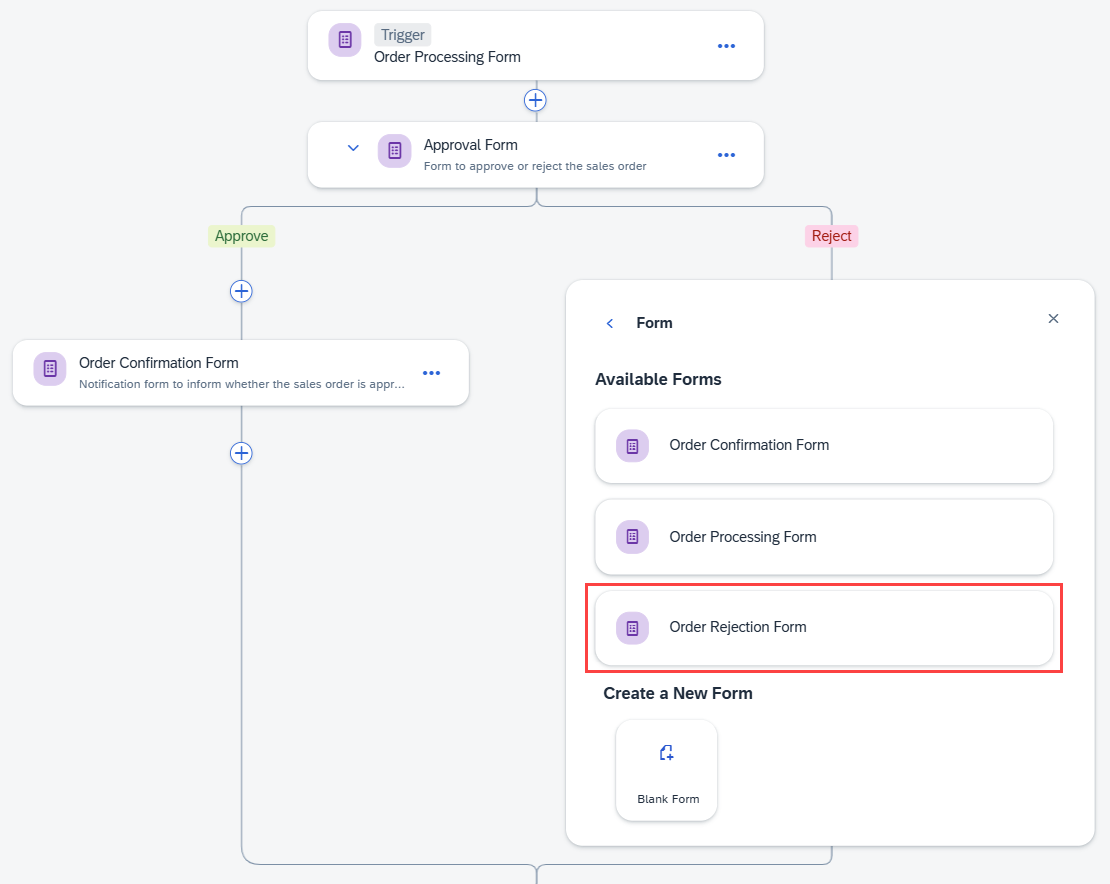

23. Choose Order Rejection Form.

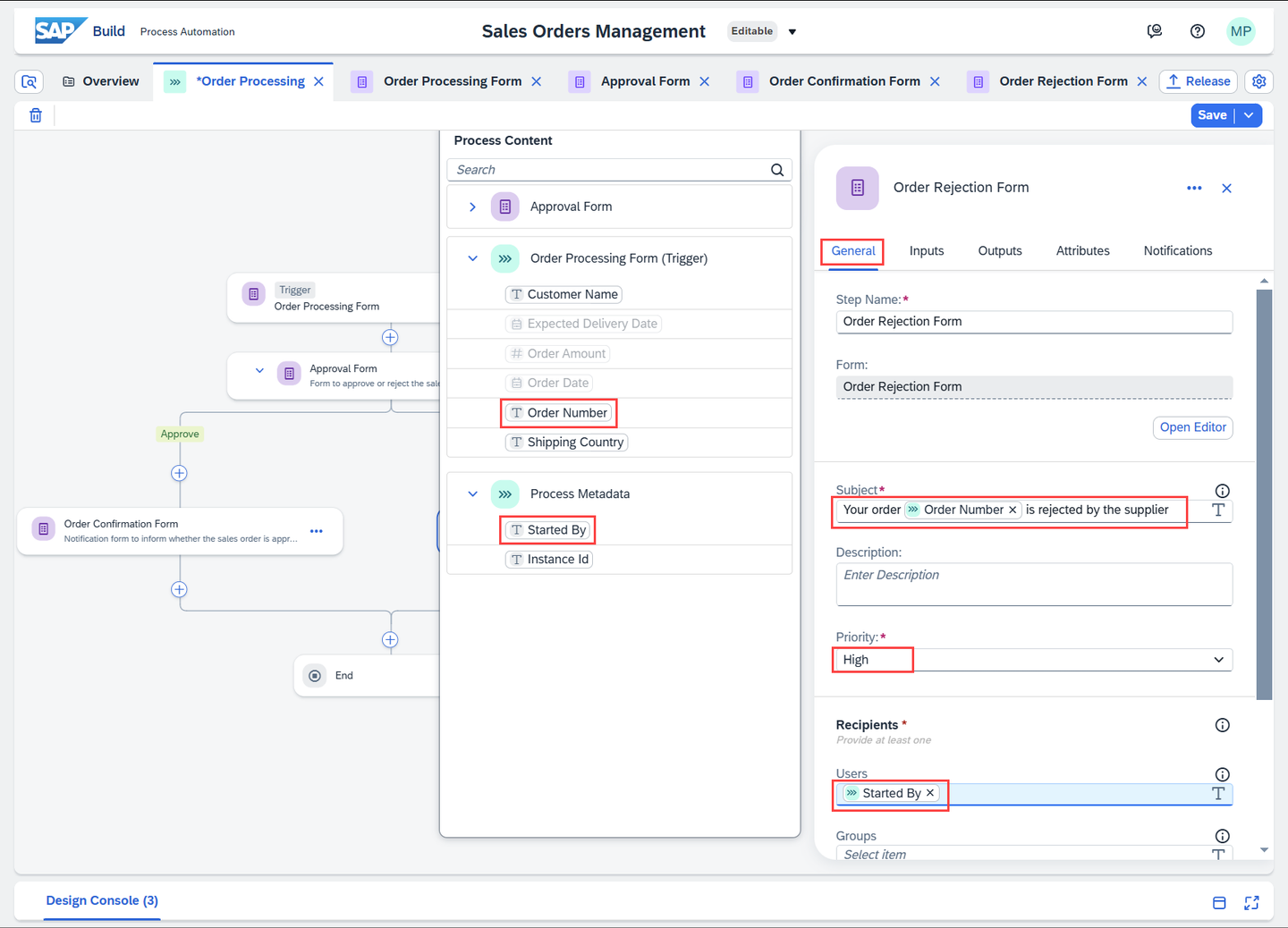

24. Configure the Order Rejection Form. In the General section configure in the Subject box:

    • Enter Your order
    • Select Order Number from the Order Processing Form
    • Enter is rejected by the supplier

25. Under Priority, select High.

26. Under Recipients, for Users, select Process Started By.



27. Configure the Inputs section.

    Form Input Fields	Process Content Entry
    Expected Delivery Date	Expected Delivery Date
    Message from the supplier	Message to buyer
    Order Amount	Order Amount
    Order Number	Order Number

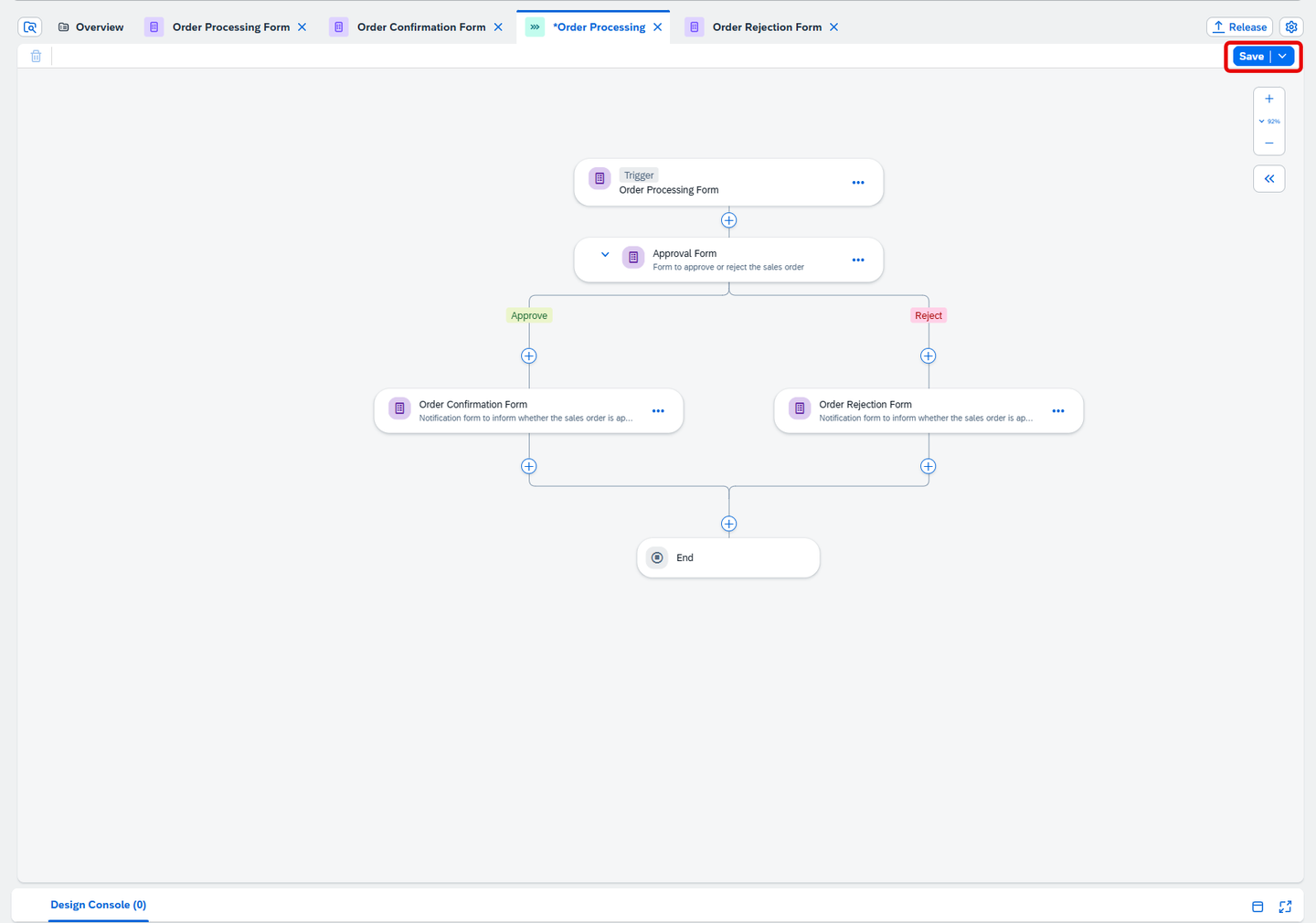

28. Save your work.

    With this you have completed the process design of your business process. You have experienced building a process in a completely no-code environment and with no technical know-how. You used the process builder to create a one-step approval process with trigger form, approval form and notification forms.
